Bessey BESS SGL-24

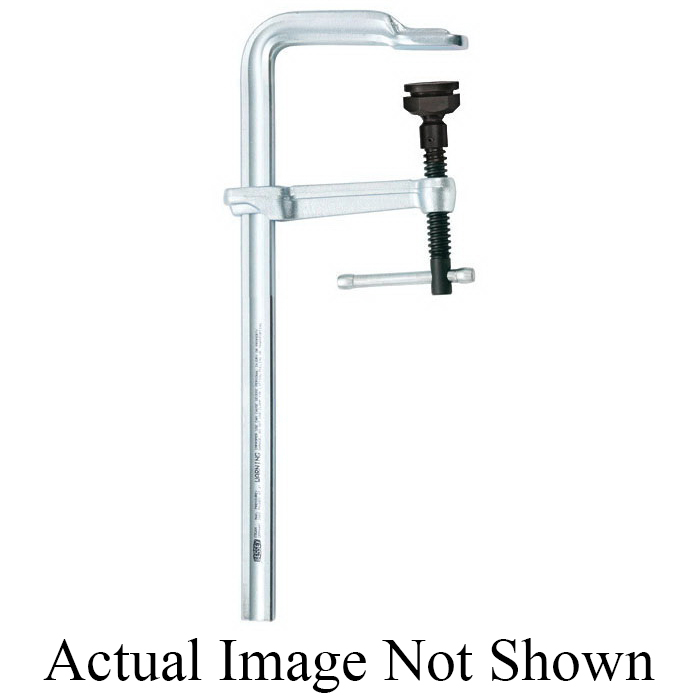

Bessey SGL-24 Medium Duty F-Style Bar Clamp, 4-3/4 in D Throat, 24 in Clamping, Replaceable Swivel

Invoice description: Clamp, Welding, F-style, H 26 Avy Duty Pad,

UPC: 788502294805
UNSPSC: 31162903
Manufacturer PN: SGL-24
$141.84 EA
In stock (3)
QTY:


Bessey Bar Clamp, Medium Duty F-Style, Series: SGL, 4-3/4 in Throat Depth, 24 in Clamping, Replaceable Swivel, 1-1/2 in Swivel Pad, 45/64 in Screw, 0.7 in Spindle Diameter, 13/32 in Bar, 33/64 in Bar Thickness, Steel Bar, 1-1/2 in Clamp Face, 1800 lb Clamping, 1-1/16 x 33/64 in Nominal Rail, Ergonomic Handle, 4.65 in L Handle, Steel Handle, Zinc Plated

  • Features

  • Heavy duty pad
  • Clamp rail and fixed jaw are created from a single piece of Bessey cold drawn steel
  • After bending and forming of the fixed jaw the rails are heat treated for maximum strength
  • Sliding steel pin handle
  • Replaceable pad comes standard with clamp
  • Does the work of c-clamps but does it 9x faster

Specifications

ApplicationWelding Applications
Bar MaterialSteel
Bar Size13/32 in
Bar Thickness33/64 in
Clamp Face1-1/2 in
Clamping Capacity24 in
Clamping Pressure1800 lb
FinishZinc Plated
Handle MaterialSteel
Handle Size4.65 in L
Handle TypeErgonomic
Nominal Rail Size1-1/16 x 33/64 in
Screw Size45/64 in
SeriesSGL
Spindle Diameter0.7 in
Swivel Pad1-1/2 in
Swivel TypeReplaceable
Throat Depth4-3/4 in
TypeMedium Duty F-Style

Additional Information

IncludesSliding Arm
WarrantyLimited Lifetime
Country of OriginDE
