Campbell CAM T7655062

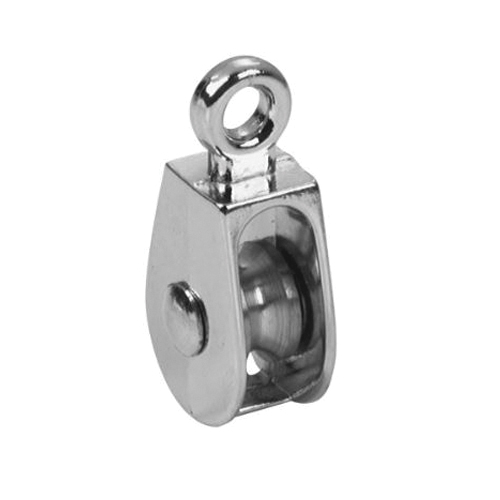

Campbell T7655062 Rigid Single Sheave Eye Pulley, 1/2 in, 3/16 in, 30 lb, Die Cast Zinc, Triple Copper/Nickel Plated

Invoice description: Pulley Sgl Rgd Ni 0174 1 /2" Tagged

UPC: 020418191985
UNSPSC: 24101613
Manufacturer PN: T7655062
$4.37 EA
Factory Order
Estimated to ship in 14 days
QTY:


Campbell Eye Pulley, Rigid Single Sheave, 1/2 in Size, 3/16 in Eye ID, 30 lb Load, 1/2 in OD Sheave, 3/16 in Rope Diameter, Die Cast Zinc, Triple Copper/Nickel Plated Finish

  • Features

  • Features 1-piece cast construction and triple copper/nickel plating
  • Solid brass or brass plated sheaves
  • DO NOT EXCEED THE WORKING LOAD LIMIT
  • Do Not use for overhead lifting or hoisting
  • Do not use to support human weight, for playground or athletic equipment or as a safety device

Specifications

ApplicationFor rope applications in awnings, flagpoles and other light duty applications
Eye Inside Diameter3/16 in
FinishTriple Copper/Nickel Plated
Load Capacity30 lb
MaterialDie Cast Zinc
Rope Diameter3/16 in
Sheave Outside Diameter1/2 in
Size1/2 in
TypeRigid Single Sheave

Additional Information

WarrantyLimited Lifetime
Country of OriginMY
