Dixon DIXV DN-6

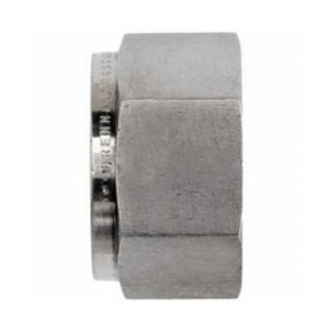

Dixon The Right Connection DN-6 Instrumentation Nut, 3/8 in, Tube, 316 Stainless Steel, Domestic
Dixon The Right Connection Instrumentation Nut, Nut, 3/8 in Nominal, Tube, -325 to 1200 deg F, 316 Stainless Steel, Domestic
Features
- Leak free, reliable fittings for use in process, control and instrumentation applications
- Fully interchangeable with Swagelok and parker A-Lok fittings
- Double collet swaging action
- Two positive seal points
- Pressure rating is the lower of either the rating of the coupling or the hose at 70 deg F
Specifications
ApplicationHigh Pressure, High Temperature, Nitrogen, Helium, Flammable Gases, Hydraulic Gases and Pneumatic Automation
Domestic/ImportDomestic
End StyleTube
Fitting/Connector TypeNut
Material316 Stainless Steel
Nominal Size3/8 in
Temperature Rating-325 to 1200 deg F
