GARR GARR 04010

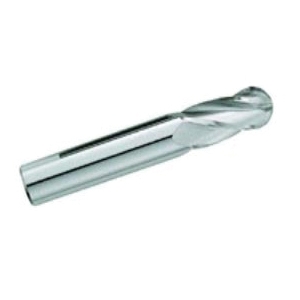

GARR 04010 190M Ball End Center Cutting Single End Stub Length End Mill, 1/32 in Dia Cutter, 1/16 in Length of Cut, 4 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, Uncoated

UNSPSC: 23242511
Manufacturer PN: 04010
$17.80 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Ball End Center Cutting Single End Stub Length, Series: 190M, 1/32 in Diameter Cutter, 1-1/2 in Overall Length, 1/16 in Length of Cut, 4 Flutes, Spiral Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Plain/Round Shank, 1-7/16 in Shank Length, Solid Submicron Carbide, Uncoated

  • Features

  • Shorter flute length for rigidity
  • Extremely versatile
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

Cutter Diameter1/32 in
Cutting DirectionRight Hand
FinishUncoated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut1/16 in
MaterialSolid Submicron Carbide
Number of Flutes4
Overall Length1-1/2 in
Series190M
Shank Diameter1/8 in
Shank Length1-7/16 in
Shank TypePlain/Round
TypeBall End Center Cutting Single End Stub Length
