GARR GARR 04017

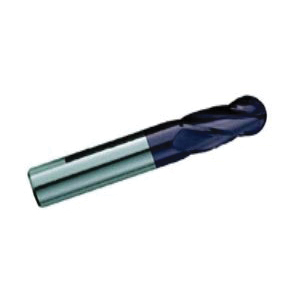

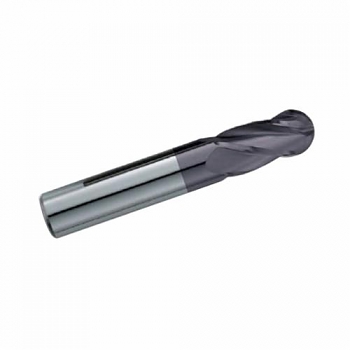

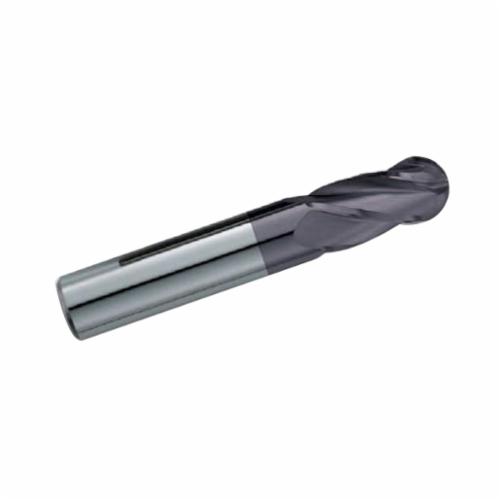

GARR 04017 190MA Ball End Center Cutting Single End Stub Length End Mill, 1/32 in Dia Cutter, 1/16 in Length of Cut, 4 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, TiALN Coated
Factory Order
GARR End Mill, Ball End Center Cutting Single End Stub Length, Series: 190MA, 1/32 in Cutter Dia, 1-1/2 in Overall Length, 1/16 in Length of Cut, 4 Flutes, Spiral Flute, 1/8 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Plain/Round Shank, 1-7/16 in Shank Length, Solid Submicron Carbide, TiALN Coated
Features
- Shorter flute length for rigidity
- Extremely versatile
- Up to 40% faster than uncoated
- Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)
Specifications
ApplicationDry or Semi-Dry Machining
Cutter Diameter1/32 in
Cutting DirectionRight Hand
FinishTiALN Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut1/16 in
MaterialSolid Submicron Carbide
Number of Flutes4
Overall Length1-1/2 in
Series190MA
Shank Diameter1/8 in
Shank Length1-7/16 in
Shank TypePlain/Round
TypeBall End Center Cutting Single End Stub Length
Specification Sheet
