GARR GARR 04140

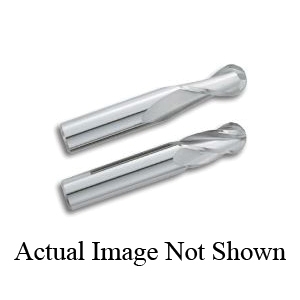

GARR 04140 Ball Nose Center Cutting Stub Length End Mill, 5/8 in Dia Cutter, 3/4 in Length of Cut, 4 Flutes, 5/8 in Dia Shank, 3 in OAL

Invoice description: Bem 5/8x3/4locx5/8x3 4fl Stub

UNSPSC: 27112803
Manufacturer PN: 04140
$111.60 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Ball Nose Center Cutting Stub Length, Series: 190M, 5/8 in Diameter Cutter, 3 in Overall Length, 3/4 in Length of Cut, 4 Flutes, Spiral Flute, 5/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Submicron Solid Carbide

  • Features

  • Shorter flute length for rigidity
  • Extremely versatile
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

Cutter Diameter5/8 in
Cutting DirectionRight Hand
Flute TypeSpiral
Helix Angle30 deg
Length of Cut3/4 in
MaterialSubmicron Solid Carbide
Number of Flutes4
Overall Length3 in
Series190M
Shank Diameter5/8 in
TypeBall Nose Center Cutting Stub Length

Additional Information

Country of OriginUS
