GARR GARR 04580

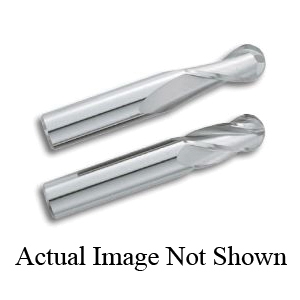

GARR 04580 990M Ball End Center Cutting Stub Length End Mill, 4.5 mm Dia Cutter, 9.5 mm Length of Cut, 4 Flutes, 5 mm Dia Shank, 50 mm OAL

Invoice description: Bem 4.5x9.5locx5x50mm 4fl Stub

UNSPSC: 27112803
Manufacturer PN: 04580
$22.34 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Ball End Center Cutting Stub Length, Series: 990M, 4.5 mm Cutter Dia, 50 mm Overall Length, 9.5 mm Length of Cut, 4 Flutes, Spiral Flute, 5 mm Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Submicron Solid Carbide

  • Features

  • Shorter flute length for rigidity
  • Extremely versatile
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

ApplicationDry or Semi-Dry Machining
Cutter Diameter4.5 mm
Cutting DirectionRight Hand
Flute TypeSpiral
Helix Angle30 deg
Length of Cut9.5 mm
MaterialSubmicron Solid Carbide
Number of Flutes4
Overall Length50 mm
Series990M
Shank Diameter5 mm
TypeBall End Center Cutting Stub Length

Additional Information

Country of OriginUS

Documents
