GARR GARR 08037

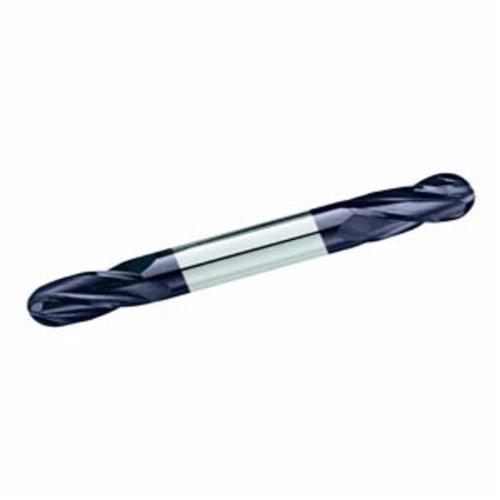

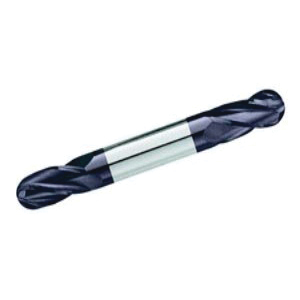

GARR 195MA 1/16 Ball End Center Cutting Double End Stub Length End Mill, 1/16 in Dia Cutter, 1/8 in Length of Cut, 4 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, TiALN Coated

UNSPSC: 23242511
Manufacturer PN: 195MA 1/16
$34.70 EA
Factory Order
Estimated to ship in 14 days
QTY:


GARR End Mill, Ball End Center Cutting Double End Stub Length, Series: 195MA, 1/16 in Diameter Cutter, 1-1/2 in Overall Length, 1/8 in Length of Cut, 4 Flutes, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, 1-3/8 in Shank Length, Solid Submicron Carbide, TiALN Coated

  • Features

  • Shorter flute length for rigidity
  • Extremely versatile
  • Up to 40% faster than uncoated
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

ApplicationDry or Semi-Dry Machining
Type Ball End Center Cutting Double End Stub Length
Series 195MA
Cutter Diameter 1/16 in
Overall Length 1-1/2 in
Length of Cut 1/8 in
Number of Flutes 4
Shank Diameter 1/8 in
Cutting Direction Right Hand
Helix Angle 30 deg
