GARR GARR 15210

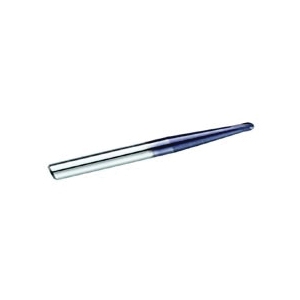

GARR 15210 950MX Ball End Center Cutting Die Mold Cutter End Mill, 1 mm Dia Cutter, 1 mm Length of Cut, 2 Flutes, 6 mm Dia Shank, 75 mm OAL, AlTiN/X.CEED Coated

UNSPSC: 27112803
Manufacturer PN: 15210
$75.68 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Ball End Center Cutting Die Mold Cutter, Series: 950MX, 1 mm Cutter Dia, 75 mm Overall Length, 1 mm Length of Cut, 2 Flutes, Spiral Flute, 6 mm Shank Dia, Right Hand Cutting, 15 deg Helix Angle, Submicron Solid Carbide, AlTiN/X.CEED Coated

  • Features

  • Rigid work holding, machine stability and part integrity are critical
  • Carbide tested and selected for specific application
  • Radius tolerance +0.0000 to 0.0005 in (+0.0000 to 0.0127 mm)
  • < or = 5 mm (0.1969 in) Dia have 5 deg taper to shank
  • Can be modified with a neck in 48 hrs

Specifications

ApplicationFor high Rockwell materials and high performance machining in the die mold industry
Cutter Diameter1 mm
Cutting DirectionRight Hand
FinishAlTiN/X.CEED Coated
Flute TypeSpiral
Helix Angle15 deg
Length of Cut1 mm
MaterialSubmicron Solid Carbide
Number of Flutes2
Overall Length75 mm
Series950MX
Shank Diameter6 mm
TypeBall End Center Cutting Die Mold Cutter
