GARR GARR 17077

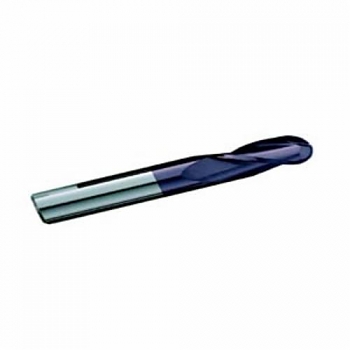

GARR 17077 323MA Ball End Center Cutting Single End Standard Length End Mill, 1/8 in Dia Cutter, 1/2 in Length of Cut, 3 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, TiALN Coated

UNSPSC: 23242511
Manufacturer PN: 17077
$17.96 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Ball End Center Cutting Single End Standard Length, Series: 323MA, 1/8 in Cutter Dia, 1-1/2 in Overall Length, 1/2 in Length of Cut, 3 Flutes, Spiral Flute, 1/8 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, 1 in Shank Length, Solid Submicron Carbide, TiALN Coated

  • Features

  • Up to 40% faster than uncoated
  • Extremely versatile
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

ApplicationDry or Semi-Dry Machining
Cutter Diameter1/8 in
Cutting DirectionRight Hand
FinishTiALN Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut1/2 in
MaterialSolid Submicron Carbide
Number of Flutes3
Overall Length1-1/2 in
Series323MA
Shank Diameter1/8 in
Shank Length1 in
TypeBall End Center Cutting Single End Standard Length
