Iscar ISCAR 5506700

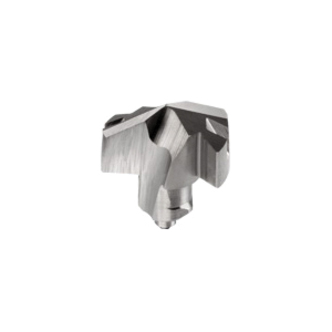

Iscar 5506700 SUMOCHAM Exchangeable Drill Head, ANSI Code: ICM 0748 IC908, 0.748 in Dia, PVD-TiAlN Coated, #19 Insert Seat, 140 deg Included, For Use With DCN R-3D, DCN R-1.5D, DCN A-1.5D, DCN A-5D, DCNS-3D and DCNT Indexable Head Drill, PVD-TiAlN Coated

Invoice description: Icm 0748 Ic908

UNSPSC: 23241600
Manufacturer PN: 5506700
$190.10 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Drill Head, Exchangeable, Series: SUMOCHAM, ANSI Code: ICM 0748 IC908, 0.748 in Dia, 0.433 in Insert, #19 Insert Seat, 140 deg Included Angle, For Use With: DCN R-3D, DCN R-1.5D, DCN A-1.5D, DCN A-5D, DCNS-3D and DCNT Indexable Head Drill, Manufacturers Grade: IC908, Through Coolant: No, Carbide, PVD-TiAlN Coated, Applicable Materials: Cast Iron, Hard Material, High Temperature Alloy, Stainless Steel and Steel

  • Features

  • Exchangeable DCN drill heads for stainless steel and high temperature alloys
  • The drill head features a T-land on the cutting edge
  • A hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
  • Provides high wear and oxidation resistance
  • Recommended for a very wide range of materials applications and machining conditions

Specifications

ApplicationGroove Turning and Parting Applications
ANSI CodeICM 0748 IC908
Applicable MaterialsCast Iron, Hard Material, High Temperature Alloy, Stainless Steel and Steel

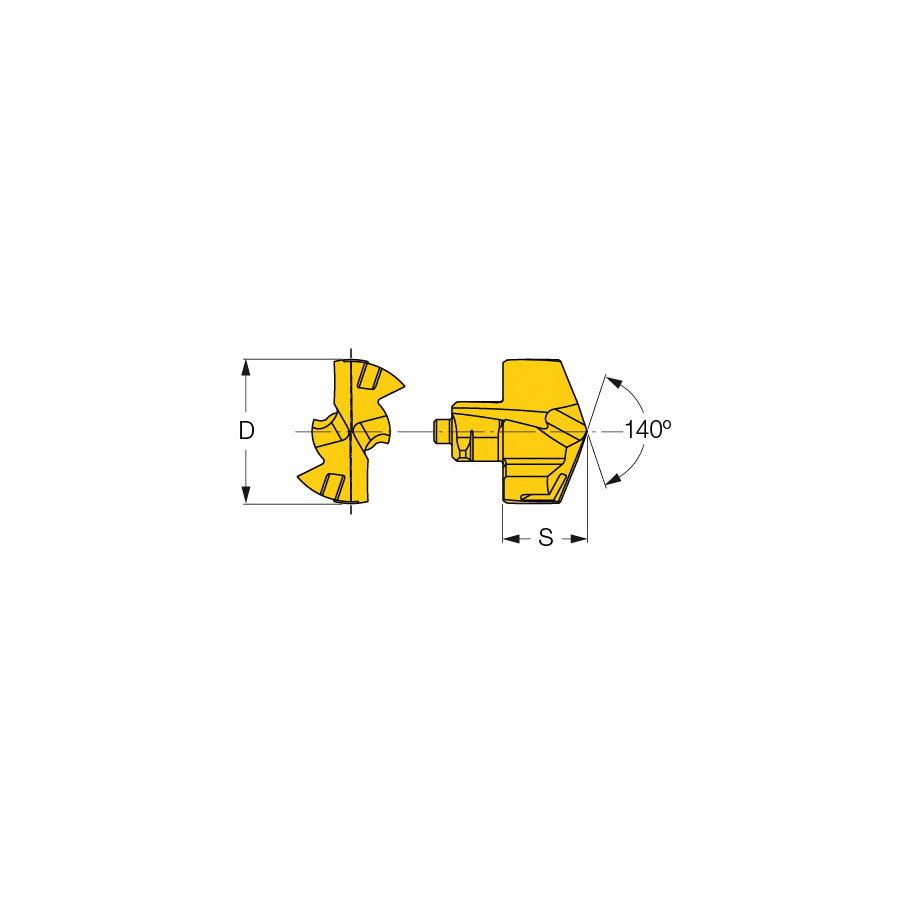

Diameter0.748 in
FinishPVD-TiAlN Coated
Included Angle140 deg
Insert Seat Size#19
Insert Size0.433 in
Manufacturers GradeIC908
MaterialCarbide
SeriesSUMOCHAM
Suitable For Use WithDCN R-3D, DCN R-1.5D, DCN A-1.5D, DCN A-5D, DCNS-3D and DCNT Indexable Head Drill
Through Coolant (Yes/No)No
TypeExchangeable

Additional Information

Country of OriginIS
