Iscar ISCAR 6403300

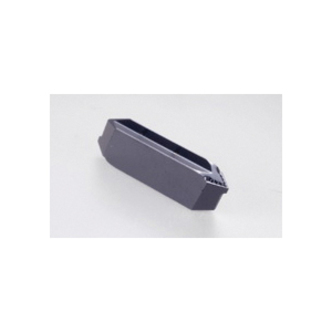

Iscar 6403300 CUT-GRIP Double End Threading Insert, TIP Insert, Rectangle Shape, 56 TPI, External Thread, 60 deg Partial Profile Thread, 0.45 mm Pitch, Manufacturers Grade: IC908, Material Grade: H, K, M, P, S
UNSPSC:
23242107
Manufacturer PN: 6403300
$48.32 EA
Factory OrderEstimated to ship in 14 days
This item has been discontinued.
Iscar Threading Insert, Double End, Series: CUT-GRIP, TIP Insert, 2 Insert, Rectangle Shape, External Thread, 60 deg Partial Profile Thread Standard, 0.45 mm Pitch, 56 Threads per Inch, 2.4 mm Thickness, 17.7 mm Length, ISO Code: TIP 2MT-0.05 IC908, 0.05 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC908, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Specifications
ApplicationExternal Groove Turn Threading and Internal Threading
Corner Radius0.05 mm
FinishPVD-TiAlN Coated
Included Angle60 deg
Insert Size2
Insert StyleTIP
ISO CodeTIP 2MT-0.05 IC908
Length17.7 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Pitch0.45 mm
SeriesCUT-GRIP
ShapeRectangle
Thickness2.4 mm
Thread Standard60 deg Partial Profile
Thread TypeExternal
Threads per Inch56
TypeDouble End
