Midland Industries MIDM 18035

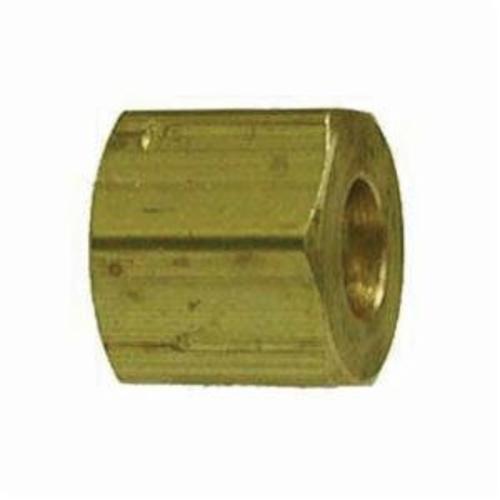

Midland Industries 18035 Tube Nut, 1/4 in, Compression, Brass

Invoice description: Nut Tube 1/4in Compressi On 1/2in 300psi Midland Industries 18035 Tube Nut, 1/4 In, Compression, Brass

UNSPSC: 40183100
Manufacturer PN: 18035
$0.78 EA
Factory Order
Estimated to ship in 7 days
QTY:


Midland Industries Tube Nut, Nut, 1/4 in Nominal, Compression, 1/2 in Hex, 300 psi, -65 to 250 deg F, Brass, 0.44 in L

  • Features

  • Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
  • Fair resistance use long nut when greater vibration resistance is needed
  • /-0.02 tolerance on all dimensions
  • Not recommended for steel tubing

Specifications

ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
Dimensions0.44 in L
End StyleCompression
Fitting/Connector TypeNut
Hex Size1/2 in
MaterialBrass
Nominal Size1/4 in
Pressure Rating300 psi
Temperature Rating-65 to 250 deg F

Additional Information

Standards/ApprovalASA|ASME and SAE 060110
Country of OriginUS
