MMM MIDM 28002

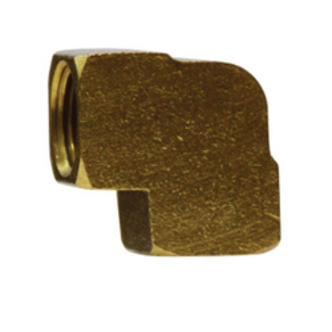

MMM 28002 90 deg Pipe Elbow, 1/4 in Nominal, FNPT End Style, Brass, Import

Invoice description: Elbow Pipe Elb 1/4in Fip Brs 1200psi Mmm 28002 90 Deg Pipe Elbow, 1/4 In Nominal, Fnpt End Style, Brass, Import

UNSPSC: 40172805
Manufacturer PN: 28002
$4.44 EA
Factory Order
Estimated to ship in 7 days
QTY:


MMM Pipe Elbow, Fitting/Connector Type: 90 deg Elbow, 1/4 in Nominal, FNPT, 1200 psi, Brass, -65 to 250 deg F, 0.68 in W, 0.78 in, Import

  • Features

  • Fair resistance vibration
  • Used with brass, bronze, copper, steel, aluminum and iron pipe
  • /- 0.02 tolerance on all dimensions
  • 1/4-18 thread size

Specifications

ApplicationFor grease, fuels, LP and natural Gas (available on special order), refrigeration, instrumentation and hydraulic systems
Dimensions0.68 in W, 0.78 in
Domestic/ImportImport
End StyleFNPT
Fitting/Connector Type90 deg Elbow
MaterialBrass
Nominal Size1/4 in
Pressure Rating1200 psi
Temperature Rating-65 to 250 deg F

Additional Information

Standards/ApprovalASA Certified|ASME Specified|SAE 130238
Country of OriginTW
