GARR GARR 39783

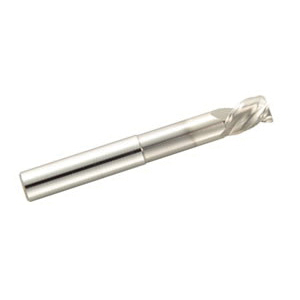

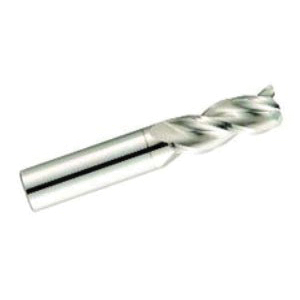

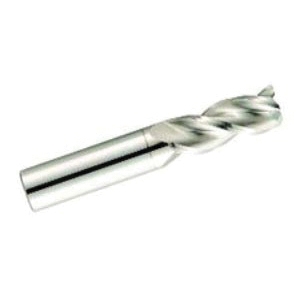

GARR 143R 3/86.03 Center Cutting High Performance Single End End Mill With Neck, 3/8 in Dia Cutter, 0.03 in Corner Radius, 1/2 in Length of Cut, 3 Flutes, 3/8 in Dia Shank, 6 in OAL, Alumastar® Coated
GARR End Mill, Center Cutting High Performance Single End, Series: 143R, 3/8 in Diameter Cutter, 0.03 in Corner Radius, 6 in Overall Length, 1/2 in Length of Cut, 3 Flutes, Spiral Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 38 deg Helix Angle, Round Shank, Submicron Grain Solid Carbide, Alumastar® Coated
Features
- Specific coating engineered to repel aluminum
- Engineered to run at 750 to 2500 sfm
- High velocity - high metal removal rate
- Use properly balanced holders
- Holds perpendicularity
- Flats can be added within 48 hr for a nominal charge
- Radius tolerance +/-0.0005 in (+/-0.0127 mm)
Specifications
ApplicationFor high speed machining of aluminum
Type Center Cutting High Performance Single End
Series 143R
Cutter Diameter 3/8 in
Corner Radius 0.03 in
Overall Length 6 in
Length of Cut 1/2 in
Number of Flutes 3
Flute Type Spiral
Shank Diameter 3/8 in
Cutting Direction Right Hand
