GARR GARR 39922

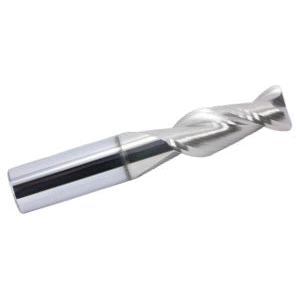

GARR 142R 12X10 2 Center Cutting Single End End Mill With Neck, 12 mm Dia Cutter, 2 mm Corner Radius, 16 mm Length of Cut, 2 Flutes, 12 mm Dia Shank, 100 mm OAL, Alumastar® Coated

UNSPSC: 27112803
Manufacturer PN: 142R 12X10 2
$141.22 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Center Cutting Single End, Series: 142R, 12 mm Diameter Cutter, 2 mm Corner Radius, 100 mm Overall Length, 16 mm Length of Cut, 2 Flutes, Spiral Flute, 12 mm Shank Diameter, Right Hand Cutting Direction, 41 deg Helix Angle, Round Shank, Submicron Grain Solid Carbide, Alumastar® Coated

  • Features

  • Specific coating engineered to repel aluminum
  • Engineered to run at 750 to 2500 sfm
  • High velocity - high metal removal rate
  • Use properly balanced holders
  • Holds perpendicularity
  • Flats can be added within 48 hr for a nominal charge
  • Radius tolerance +/-0.0005 in (+/-0.0127 mm)

Specifications

ApplicationFor high speed machining of aluminum
Type Center Cutting Single End
Series 142R
Cutter Diameter 12 mm
Corner Radius 2 mm
Overall Length 100 mm
Length of Cut 16 mm
Number of Flutes 2
Flute Type Spiral
Shank Diameter 12 mm
Cutting Direction Right Hand
