GARR GARR 43022

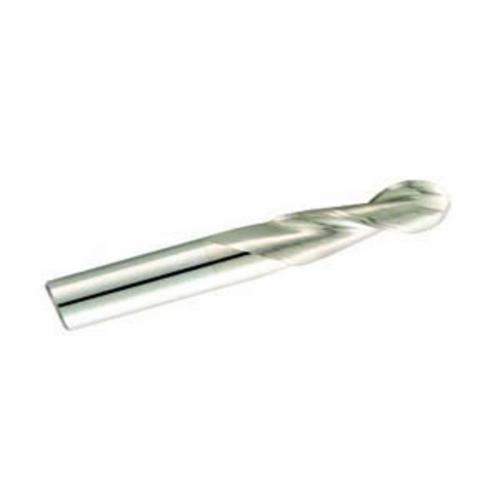

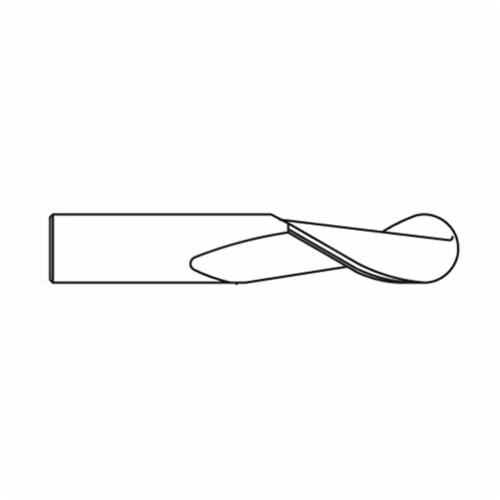

GARR 142B 3/8 Ball End Center Cutting High Performance End Mill, 3/8 in Dia Cutter, 7/8 in Length of Cut, 2 Flutes, 3/8 in Dia Shank, 2-1/2 in OAL, Alumastar® Coated

UNSPSC: 23242511
Manufacturer PN: 142B 3/8
$57.90 EA
In stock (1)
QTY:


GARR Ball End Mill, Center Cutting High Performance, Series: 142B, 3/8 in Diameter Cutter, 2-1/2 in Overall Length, 7/8 in Length of Cut, 2 Flutes, Spiral Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 41 deg Helix Angle, 1-5/8 in Shank Length, Solid Submicron Grain Carbide, Alumastar® Coated

  • Features

  • Specific coating engineered to repel aluminum
  • Engineered to run at 750 to 2500 SFM
  • For high speed machining of aluminum
  • High velocity - high metal removal rate
  • Use properly balanced holders
  • Holds perpendicularity
  • Flats can be added within 48 hr for a nominal charge
  • Ball radius tolerance is +0.0000 to 0.0005 in (+0.0000 to 0.0127 mm)

Specifications

ApplicationHigh Speed Machining
Type Ball End Center Cutting
Series 142B
Cutter Diameter 3/8 in
Overall Length 2-1/2 in
Length of Cut 7/8 in
Number of Flutes 2
Flute Type Spiral
Shank Diameter 3/8 in
Cutting Direction Right Hand
Helix Angle 41 deg
