GARR GARR 44054

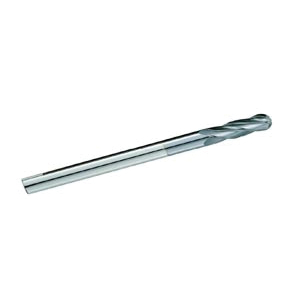

GARR 730MC 3/163- Ball Nose Center Cutting Extra Length End Mill, 3/16 in Dia Cutter, 1-1/8 in Length of Cut, 4 Flutes, 3/16 in Dia Shank, 3 in OAL, TiCN Coated

UNSPSC: 27112803
Manufacturer PN: 730MC 3/163-
$37.56 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Ball Nose Center Cutting Extra Length, Series: 730MC, 3/16 in Diameter Cutter, 3 in Overall Length, 1-1/8 in Length of Cut, 4 Flutes, Helix Flute, 3/16 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Submicron Solid Carbide, TiCN Coated

  • Features

  • Extended reach
  • Improved abrasion resistance and lubricity
  • Can be modified with a neck
  • Up to 25% faster than uncoated
  • Extremely versatile
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

Type Ball Nose Center Cutting Extra Length
Series 730MC
Cutter Diameter 3/16 in
Overall Length 3 in
Length of Cut 1-1/8 in
Number of Flutes 4
Flute Type Helix
Shank Diameter 3/16 in
Cutting Direction Right Hand
Helix Angle 30 deg
