GARR GARR 50800

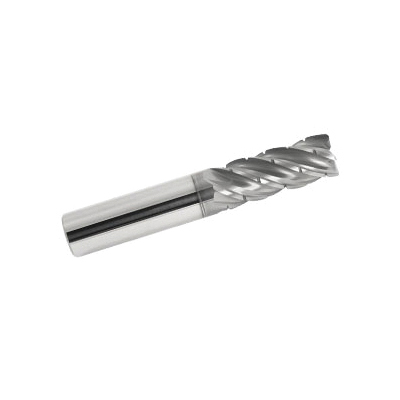

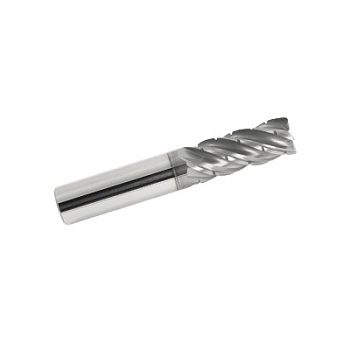

GARR 50800 V5C Center Cutting Chip Splitter High Performance Variable Helix Corner Radius End Mill, 12 mm Dia Cutter, 1 mm Corner Radius, 42 mm Length of Cut, 5 Flutes, 12 mm Dia Shank, 100 mm OAL, AlCrN Coated
Invoice description:
Em 12x42locx12x100mm Cr1 5fl Alcrn Var Hp
Factory Order
GARR Corner Radius End Mill, Center Cutting Chip Splitter High Performance Variable Helix, Series: V5C, 12 mm Diameter Cutter, 1 mm Corner Radius, 100 mm Overall Length, 42 mm Length of Cut, 5 Flutes, Spiral Flute, 12 mm Shank Diameter, Right Hand Cutting Direction, Plain Shank, Solid Submicron Grain Carbide, AlCrN Coated
Features
- For titanium, inconel and stainless steel
- Chip splitter to help break long chips
- Staggered flutes to control harmonics
- Variable flute design helps with chip evacuation in slots and pockets
- PCT (polish carbide treatment) enhances tool life
- +0.001 to 0.001 in (+0.025 to 0.025 mm) corner radius tolerance
Specifications
ApplicationTrochoidal Milling
Corner Radius1 mm
Cutter Diameter12 mm
Cutting DirectionRight Hand
FinishAlCrN Coated
Flute TypeSpiral
Length of Cut42 mm
MaterialSolid Submicron Grain Carbide
Number of Flutes5
Overall Length100 mm
SeriesV5C
Shank Diameter12 mm
Shank TypePlain
TypeCenter Cutting Chip Splitter High Performance Variable Helix
Additional Information
Standards/ApprovalPROP65: This product can expose you to chemicals including cobalt, which is known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov
Country of OriginUS
Sds
