Precision Twist Drill UTD 018068

Precision Twist Drill 5999166 R18 General Purpose Jobber Length Drill Bit, #68 Drill - Wire, 0.031 in Drill - Decimal Inch, 118 deg Point, HSS, Steam Tempered

Invoice description: Bit Drill #68 Hss Jobber R40 Hss Brt 118d Stub Drill Short Ansi 3/8 Inch

UPC: 086071180681

UNSPSC: 23241606

Manufacturer PN: 5999166

^$2.14 EA

Factory Order
Estimated to ship in 14 days

enlarge

Product Overview

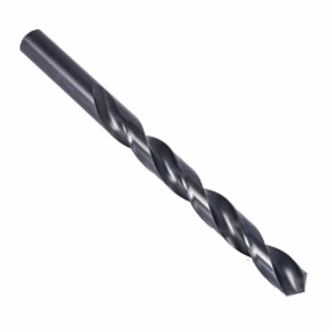

Precision Twist Drill Jobber Length Drill Bit, General Purpose, Series: R18, Imperial, #68 Drill - Wire, 0.031 in Drill - Decimal Inch, 1-3/8 in Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 1/2 in Flute Length, 0.031 in Shank, Straight Shank, 118 deg Point, Conventional Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Steam Tempered, Dark Gray, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Ferritic + Austenitic, Graphite/Malleable Cast Iron, Titanium, Nickel, Copper, Brass and Bronze

Features
Steam oxide reduces wear and chip welding in harder ferrous materials for increased wear resistance and lubricity

Specifications

Applicable MaterialsMagnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Ferritic + Austenitic, Graphite/Malleable Cast Iron, Titanium, Nickel, Copper, Brass and Bronze

ColorDark Gray

Cutting Depth4XD

Cutting DirectionRight Hand

Cutting Edge MaterialHSS

Drill Diameter Measurement SystemImperial

Drill Size - Decimal Inch0.031 in

Drill Size - Wire#68

FinishSteam Tempered

Flute Length1/2 in

Flute TypeSpiral

MaterialHSS

Number of Flutes2
