Precision Twist Drill UTD 034517

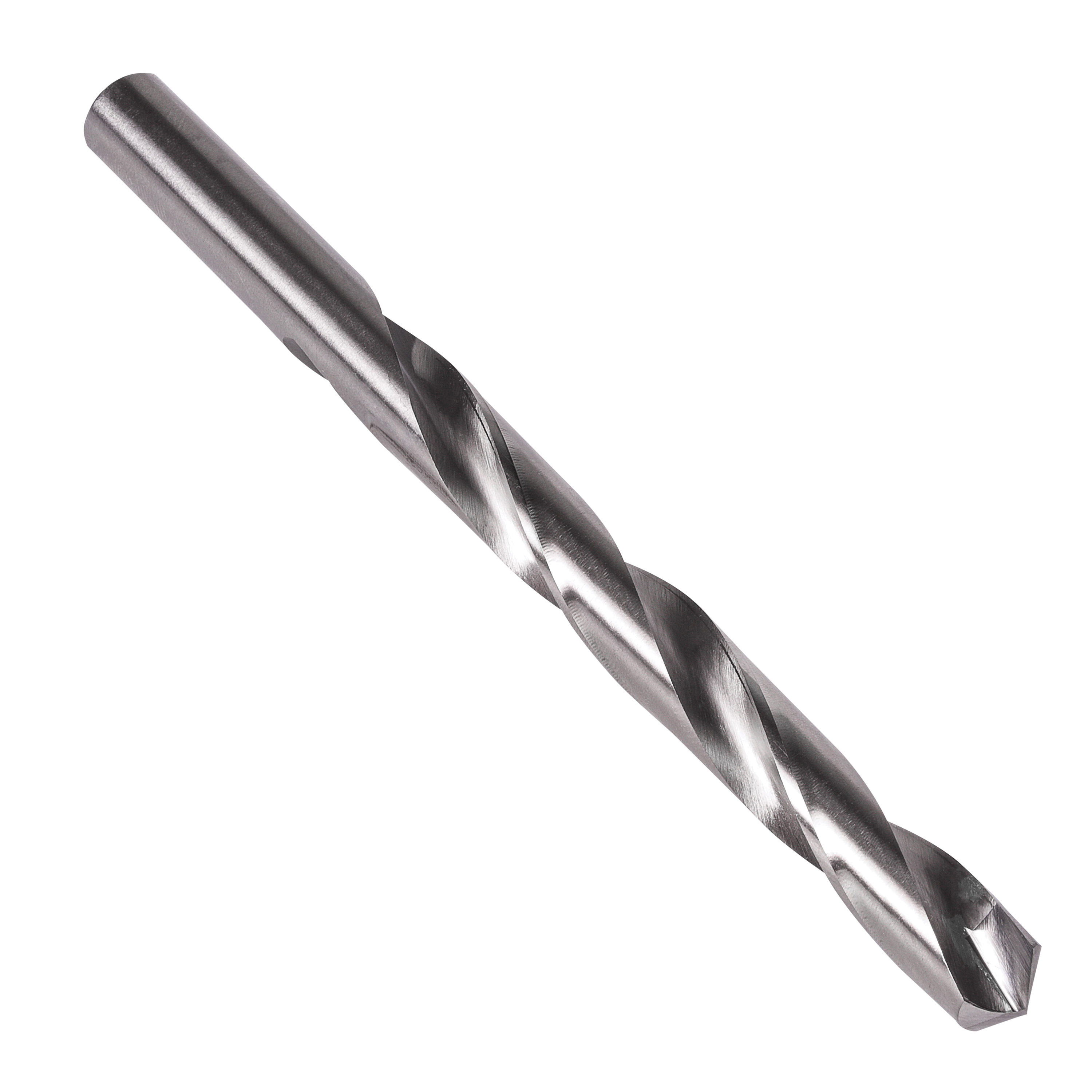

Precision Twist Drill 6001928 D444 Heavy Duty Special Purpose Jobber Length Drill Bit, Q Drill - Letter, 0.332 in Drill - Decimal Inch, 118 deg Point, HSS HM, Bright
Invoice description:
Q Crb Jbr Leng Drl D444 Hss Hm Brt 118d 6001928
In stock
(1)
Precision Twist Drill Jobber Length Drill Bit, Heavy Duty Special Purpose, Series: D444, Imperial, Q Drill - Letter, 0.332 in Drill - Decimal Inch, 4-3/4 in Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 3-7/16 in Flute Length, 0.332 in Shank, Straight Shank, 118 deg Point, Conventional Point, Right Hand Cutting Direction, Carbide Cutting Edge, No Through Coolant, HSS HM, Bright, Applicable Materials: Lamellar Graphite, Nodular Graphite, Malleable Cast Iron, Abrasive and Non-Ferrous Materials
Features
- Carbide tips cuts faster than high speed steel
- It is commonly used on ferrous and non-ferrous materials including cast iron, steel and steel alloys
- Bright provides a smooth, polished finish on the tool
- It increases chip flow in softer materials such as aluminum, wood and plastic
- Spiral flutes are constructed with a higher flute angle to remove chips more easily
- Non-coolant throughWeb-thinned
- Tapered web configuration
- No coolant channe
Specifications
Applicable MaterialsLamellar Graphite, Nodular Graphite, Malleable Cast Iron, Abrasive and Non-Ferrous Materials
Cutting Depth4XD
Cutting DirectionRight Hand
Cutting Edge MaterialCarbide
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.332 in
Drill Size - LetterQ
FinishBright
Flute Length3-7/16 in
Flute TypeSpiral
MaterialHSS HM
Number of Flutes2
Overall Length4-3/4 in
Point Angle118 deg
Point TypeConventional
SeriesD444
Shank Size0.332 in
Shank TypeStraight
Through Coolant (Yes/No)No
TypeHeavy Duty Special Purpose
Additional Information
Standards/ApprovalPROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
Country of OriginUS
