Precision Twist Drill UTD 041017

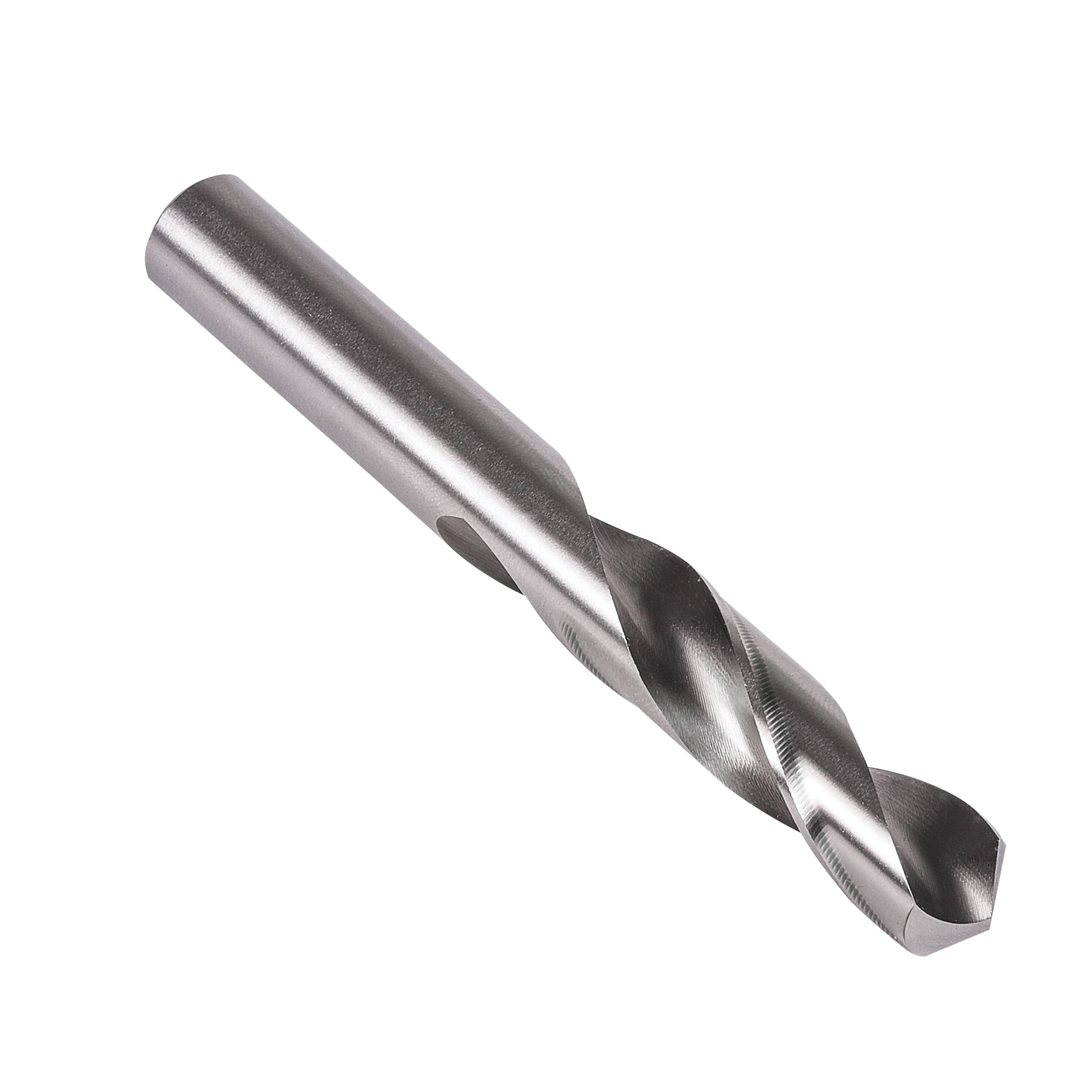

Precision Twist Drill 5998807 R41 General Purpose Screw Machine Drill, #17 Drill - Wire, 0.173 in Drill - Decimal Inch, HSS, Bright

Invoice description: N17 Stub Drl Shrt R41 Hss Brt 118d R41c Hss Steam Oxide 135d Nas907c N40 5998807

UPC: 086071410177

UNSPSC: 23241606

Manufacturer PN: 5998807

^$4.58 EA

In stock (11)

enlarge

Product Overview

Precision Twist Drill Screw Machine Drill, General Purpose, Series: R41, Imperial, #17 Drill - Wire, 0.173 in Drill - Decimal Inch, 2-3/16 in Overall Length, 2.5XD Cutting Depth, 2 Flutes, Spiral Flute, 1-1/8 in Flute Length, 0.173 in Shank, Straight Shank, 118 deg Point, Conventional Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Bright, Applicable Materials: Alloy Steel, Brass, Bronze, Copper, Free Machining Stainless Steel, Ferritic + Austenitic, Graphite/Malleable Cast Iron, Hardened and Tempered Steel, Magnetic Soft Steel, Nickel, Plain Carbon Steel, Structural Steel/Case Carburizing Steel and Titanium

Features
Bright finish improves chip flow in soft or non-ferrous materials

Specifications

ApplicationFor general drilling applications

Applicable MaterialsAlloy Steel, Brass, Bronze, Copper, Free Machining Stainless Steel, Ferritic + Austenitic, Graphite/Malleable Cast Iron, Hardened and Tempered Steel, Magnetic Soft Steel, Nickel, Plain Carbon Steel, Structural Steel/Case Carburizing Steel and Titanium

Cutting Depth2.5XD

Cutting DirectionRight Hand

Cutting Edge MaterialHSS

Drill Diameter Measurement SystemImperial

Drill Size - Decimal Inch0.173 in

Drill Size - Wire#17

FinishBright

Flute Length1-1/8 in

Flute TypeSpiral

MaterialHSS

Number of Flutes2

Overall Length2-3/16 in
