YG-1 YG1 21556TC

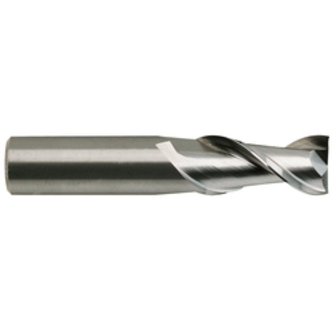

YG-1 21556TC E5254 ALU-POWER Banshee Center Cut Imperial Regular Length Square End Mill, 3/32 in Dia Cutter, 1/4 in Length of Cut, 2 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, TiCN Coated
Invoice description:
Em 3/32" Dia 9/32" Loc Aluminum
Factory Order
YG-1 Square End Mill, Banshee Center Cut Imperial Regular Length, Series: E5254 ALU-POWER, 3/32 in Diameter Cutter, 1-1/2 in Overall Length, 1/4 in Length of Cut, 2 Flutes, Spiral Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 42 deg Helix Angle, Plain Shank, Micrograin Carbide, TiCN Coated
Features
- High velocity milling of aluminum and other non-ferrous materials
- Excellent plunging capabilities
- Improved surface roughness cylindrical margin which is controlled tightly
- Maximum metal removal rate
- Superior chip evacuation
- Mirror face excellent surface finish
- Special designed geometry with high rigidity cutting edge
- Excellent chip removal higher rake angle, higher helix angle (42 deg) and bigger chip pocket
Specifications
Cutter Diameter3/32 in
Cutting DirectionRight Hand
FinishTiCN Coated
Flute TypeSpiral
Helix Angle42 deg
Length of Cut1/4 in
MaterialMicrograin Carbide
Number of Flutes2
Overall Length1-1/2 in
SeriesE5254 ALU-POWER
Shank Diameter1/8 in
Shank TypePlain
TypeBanshee Center Cut Imperial Regular Length
