GARR GARR 70476

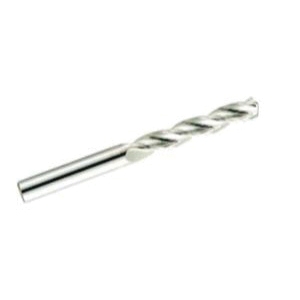

GARR 70476 1180 High Performance Jobber Length Drill Bit, V Drill - Letter, 0.377 in Drill - Decimal Inch, 140 deg Point, Submicron Grain Solid Carbide, Alumastar Coated
Factory Order
GARR Jobber Length Drill Bit, High Performance, Series: 1180, Imperial, V Drill - Letter, 0.377 in Drill - Decimal Inch, 4-1/4 in Overall Length, 5XD Cutting Depth, 3 Flutes, Spiral Flute, 2-3/8 in Flute Length, 0.377 in Shank, 140 deg Point, Submicron Grain Solid Carbide Cutting Edge, Submicron Grain Solid Carbide, Alumastar Coated, Shiny Silver Gray, Applicable Materials: Aluminum and Soft Materials
Features
- No spot drilling required
- Unique point geometry and coating for higher speeds and feeds
- Up to 5X longer tool life than ZrN coated drills
- Live tooling recommended on lathe processes
Specifications
Applicable MaterialsAluminum and Soft Materials
ColorShiny Silver Gray
Cutting Depth5XD
Cutting Edge MaterialSubmicron Grain Solid Carbide
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.377 in
Drill Size - LetterV
FinishAlumastar Coated
Flute Length2-3/8 in
Flute TypeSpiral
MaterialSubmicron Grain Solid Carbide
Number of Flutes3
Overall Length4-1/4 in
Point Angle140 deg
Series1180
Shank Size0.377 in
TypeHigh Performance
