  5. GARR 83940

GARR GARR 83940

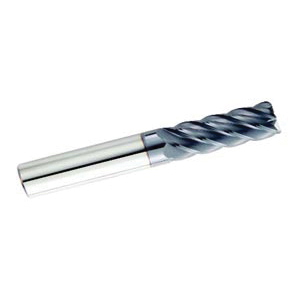

GARR 255RA 5/16.0 Center Cutting High Performance Single End End Mill, 5/16 in Dia Cutter, 0.01 in Corner Radius, 13/16 in Length of Cut, 5 Flutes, 5/16 in Dia Shank, 2-1/2 in OAL, AlTiN/X.CEED Coated

UNSPSC: 27112803
Manufacturer PN: 255RA 5/16.0
$45.06 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Center Cutting High Performance Single End, Series: 255RA, 5/16 in Diameter Cutter, 0.01 in Corner Radius, 2-1/2 in Overall Length, 13/16 in Length of Cut, 5 Flutes, Spiral Flute, 5/16 in Shank Diameter, Right Hand Cutting Direction, 45 deg Helix Angle, Round Shank, Submicron Grain Solid Carbide, AlTiN/X.CEED Coated

  • Features

  • High performance milling in steels, stainless steel and exotics
  • Rigid work holding, machine stability and part integrity are critical
  • Up to 40% faster than uncoated
  • Improved finishes in titanium
  • Heavy core
  • An ideal tool for finishing applications after using the VRX end mill
  • Radius tolerance +/-0.001 in (+/-0.025 mm)

Specifications

ApplicationDry or Semi-Dry Machining
Type Center Cutting High Performance Single End
Series 255RA
Cutter Diameter 5/16 in
Corner Radius 0.01 in
Overall Length 2-1/2 in
Length of Cut 13/16 in
Number of Flutes 5
Flute Type Spiral
Shank Diameter 5/16 in
Cutting Direction Right Hand
