GARR GARR 99247

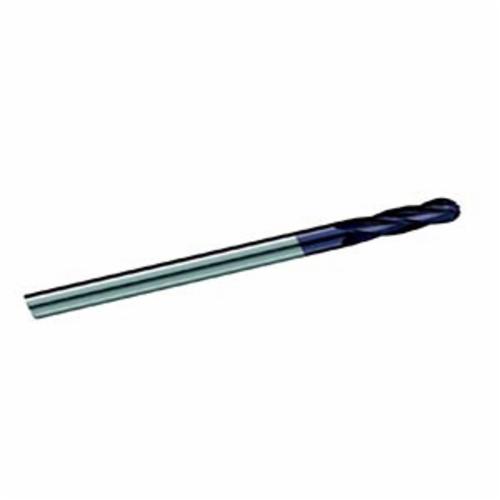

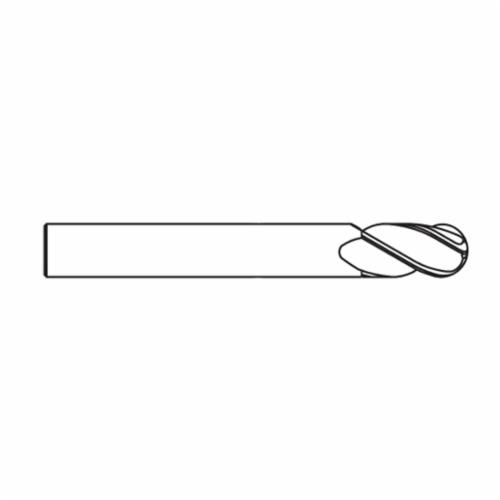

GARR 99237 750MA Ball End Center Cutting Extra Length Ball End Mill, 12 mm Dia Cutter, 50 mm Length of Cut, 4 Flutes, 12 mm Dia Shank, 100 mm OAL, TiALN Coated

Invoice description: Bem 12x50locx12x100mm 4fl Tialn Xl

UNSPSC: 23242511
Manufacturer PN: 99247
$102.70 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR Ball End Mill, Center Cutting Extra Length Single End, Series: 750MA, 12 mm Diameter Cutter, 100 mm Overall Length, 50 mm Length of Cut, 4 Flutes, Spiral Flute, 12 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, 50 mm Shank Length, Solid Submicron Grain Carbide, TiAlN Coated

  • Features

  • Extended reach
  • Can be modified with a neck
  • Extremely versatile
  • Up to 40% faster than uncoated
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

ApplicationDry or Semi-Dry Machining
Cutter Diameter12 mm
Cutting DirectionRight Hand
FinishTiALN Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut50 mm
MaterialSolid Submicron Carbide
Number of Flutes4
Overall Length100 mm
Series750MA
Shank Diameter12 mm
Shank Length50 mm
TypeBall End Center Cutting Extra Length

Additional Information

Country of OriginUS
