JET® JET 107100

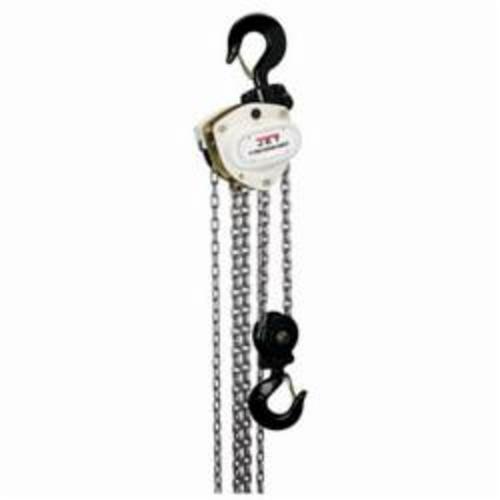

JET® 107100 L-100 Double Reeved Hand Chain Hoist, 5 ton Load, 10 ft H Lifting, 23-5/8 in Min Between Hooks, 75 lb Rated

UPC: 662755995460
UNSPSC:
Manufacturer PN: 107100
$1,660.36 EA
In stock (1)
QTY:


JET® Hand Chain Hoist, Double Reeved, Series: L-100, 5 ton, 10 ft Lifting Height, 23-5/8 in Minimum Between Hooks, 75 lb Pull to Lift, Dual Pawl Weston Brake, 15.75 in L x 8.66 in W x 11.81 in H

  • Features

  • Weston style dual pawl brake system- double pawl design increases safety
  • Alloy steel hooks industrial rated hooks rotate 360 deg for easy rigging
  • Hooks slowly stretch to indicate an overload situation increasing jobsite safety
  • Sealed ball bearing design increases efficiency and promotes smear operation
  • Cast steel safety latches increased durability with heavy duty safety latches secured with allen screws and lock nuts
  • Heat treated load plates, case hardened and corrosive resistant coated internal parts extend the life of the hoist in the harshest of environments
  • Grade 100 load chain corrosive resistant grade 100 load chain is stronger than grade 80 load chain extending the life of the hoist
  • All steel construction impact resistant covers that provide durability and protection
  • Compact design smaller body and lightweight design for low headroom applications and use in confined areas
  • Certification- load tested to 125% of capacity with certificate

Specifications

Type Double Reeved
Series L-100
Load Capacity 5 ton
Lifting Height 10 ft
Minimum Between Hook 23-5/8 in
Pull to Lift Rated L 75 lb
Brake Type Dual Pawl Weston
Dimensions 15.75 in L x 8.66 in W x 11.81 in H
