Armstrong® GW 89006

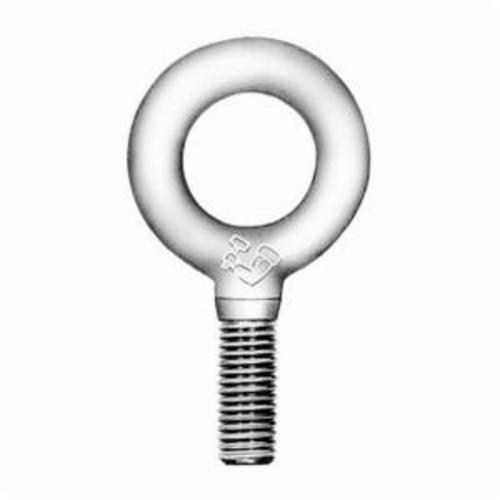

Armstrong® 89-006 Plain Pattern Eye Bolt, 9/16-12, 1-5/8 in L Shank, Carbon Steel
UPC: 781412890068
UNSPSC:
31161610
Manufacturer PN: 89-006
$6.18 EA
Factory Order
Estimated to ship in 14 days
Estimated to ship in 14 days
Armstrong® Eye Bolt, Plain Pattern, Measurement System: Imperial, 9/16-12 Thread, 1-5/8 in Shank Length, Carbon Steel, 1-9/32 in ID Eye, 2-9/32 in OD Eye, UNC Thread, 3000 lb Working Load, 1-5/8 in Thread Length, C1030 Grade
Features
- Maximum working loads were determined and actual lifts should be accomplished by using a very slow, steady pull
- Angular lifts place additional stress on a lifting eye and should be avoided
- Plain pattern lifting eyes should be firmly seated with at least 90% of the thread engaged with the treads close to the eye fully engaged
- Lifting eyes should never be ground, machined, metal stamped or altered in any way
- Lifting eyes capabilities can be affected by temperature
- Lifting eyes should be routinely inspected
- 1125 lb working load at 30 deg and 750 lb working load at 45 deg
Specifications
ApplicationLifting
Type Plain Pattern
Measurement System Imperial
Diameter - Thread Si 9/16-12
Shank Length 1-5/8 in
Material Carbon Steel
Inside Eye Diameter 1-9/32 in
Outside Eye Diameter 2-9/32 in
Thread Type UNC
