Midland Industries MIDM 10008

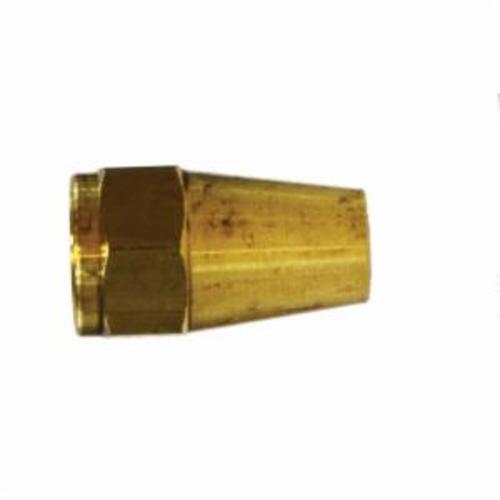

Midland Industries 10008 Long Rod Nut, 3/4 in Nominal, SAE Flare Threaded UNF, Brass

Invoice description: Nut Rod Long 3/4in 0.035 In Wall 1-1/4in Midland Industries 10008 Long Rod Nut, 3/4 In Nominal, Sae Flare Threaded Unf, Brass

UNSPSC: 40183100

Manufacturer PN: 10008

^$39.40 EA

Factory Order
Estimated to ship in 7 days

enlarge

Product Overview

Midland Industries Rod Nut, Long, Fitting/Connector Type: Nut, 3/4 in Nominal, SAE Flare Threaded UNF, 0.035 in Thickness, 1-1/4 in Hex, 550 psi, -65 to 250 deg F, Brass, 2.19 in L

Features
Good vibration resistance, use long nut when greater vibration resistance is required
/- 0.03 tolerance on all dimensions

Specifications

ApplicationLP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems, Copper, Brass, Aluminum and Steel Hydraulic Tubing That Can Be Flared

Dimensions2.19 in L

End StyleSAE Flare Threaded UNF

Fitting/Connector TypeNut

Hex Size1-1/4 in

MaterialBrass

Nominal Size3/4 in

Pressure Rating550 psi

Temperature Rating-65 to 250 deg F

Thickness0.035 in

TypeLong
