Midland Industries MIDM 10033

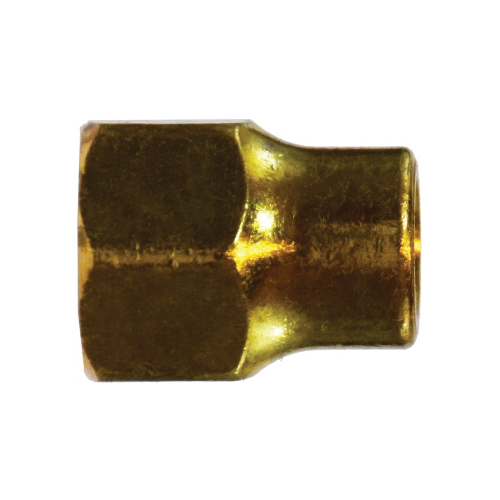

Midland Industries 10033 Long Nut, 3/4 in Nominal, SAE Flare Threaded UNF, CA377 Brass

Invoice description: Nut Long 3/4in 0.035in W All 1.31in Fgd Midland Industries 10033 Long Nut, 3/4 In Nominal, Sae Flare Threaded Unf, Ca377 Brass

UNSPSC: 40183100

Manufacturer PN: 10033

^$17.38 EA

Factory Order
Estimated to ship in 7 days

enlarge

Product Overview

Midland Industries Nut, Long, Fitting/Connector Type: Nut, 3/4 in Nominal, SAE Flare Threaded UNF, 0.035 in Thickness, 1.31 in Hex, 550 psi, -65 to 250 deg F, CA377 Brass, 1-3/4 in L, Forged

Features
Good vibration resistance, use long nut when greater vibration resistance is required
/- 0.03 tolerance on all dimensions

Specifications

ApplicationLP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems, Copper, Brass, Aluminum and Steel Hydraulic Tubing That Can Be Flared

Dimensions1-3/4 in L

End StyleSAE Flare Threaded UNF

Fitting/Connector TypeNut

Hex Size1.31 in

MaterialCA377 Brass

Method of ManufactureForged

Nominal Size3/4 in

Pressure Rating550 psi

Temperature Rating-65 to 250 deg F

Thickness0.035 in

TypeLong
