Midland Industries MIDM 10045

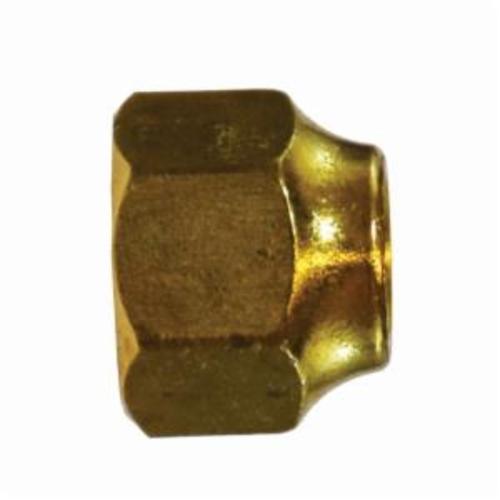

Midland Industries 10045 Short Nut, 7/8 in Nominal, SAE Flare Threaded UNF, CA377 Brass
Invoice description:
Nut Short 7/8in 0.035in Wall 1.38in Fgd Midland Industries 10045 Short Nut, 7/8 In Nominal, Sae Flare Threaded Unf, Ca377 Brass
Factory Order
Midland Industries Nut, Short, Fitting/Connector Type: Nut, 7/8 in Nominal, SAE Flare Threaded UNF, 0.035 in Thickness, 1.38 in Hex, 450 psi, -65 to 250 deg F, CA377 Brass, 1.18 in L, Forged
Features
- Good vibration resistance, use long nut when greater vibration resistance is required
- /- 0.03 tolerance on all dimensions
Specifications
ApplicationLP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems, Copper, Brass, Aluminum and Steel Hydraulic Tubing That Can Be Flared
Dimensions1.18 in L
End StyleSAE Flare Threaded UNF
Fitting/Connector TypeNut
Hex Size1.38 in
MaterialCA377 Brass
Method of ManufactureForged
Nominal Size7/8 in
Pressure Rating450 psi
Temperature Rating-65 to 250 deg F
Thickness0.035 in
TypeShort
Additional Information
Standards/ApprovalASA|ASME|MS and SAE 010166
Country of OriginUS
