Midland Industries MIDM 10048

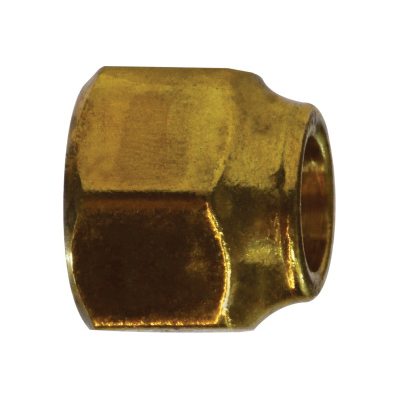

Midland Industries 10048 Short Extra Heavy Nut, 1/2 in Nominal, SAE Flare Threaded UNF, CA377 Brass
Invoice description:
Nut Short 1/2in 0.032in Wall 1in 750psi Midland Industries 10048 Short Extra Heavy Nut, 1/2 In Nominal, Sae Flare Threaded Unf, Ca377 Brass
Factory Order
Midland Industries Nut, Short Extra Heavy, Fitting/Connector Type: Nut, 1/2 in Nominal, SAE Flare Threaded UNF, 0.032 in Thickness, 1 in Hex, 750 psi, -65 to 250 deg F, CA377 Brass, 0.88 in L, Forged
Features
- Good vibration resistance, use long nut when greater vibration resistance is required
- /- 0.03 tolerance on all dimensions
Specifications
ApplicationLP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems, Copper, Brass, Aluminum and Steel Hydraulic Tubing That Can Be Flared
Dimensions0.88 in L
End StyleSAE Flare Threaded UNF
Fitting/Connector TypeNut
Hex Size1 in
MaterialCA377 Brass
Method of ManufactureForged
Nominal Size1/2 in
Pressure Rating750 psi
Temperature Rating-65 to 250 deg F
Thickness0.032 in
TypeShort Extra Heavy
Additional Information
Standards/ApprovalASA|ASME|MS and SAE
Country of OriginUS
Catalog
