Midland Industries MIDM 10052

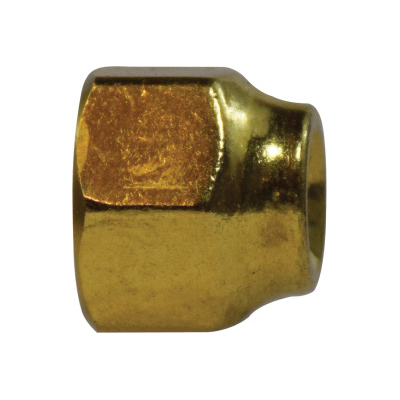

Midland Industries 10052 Reducing Nut, 3/8 x 1/4 in Nominal, SAE Female Flare x Tube, CA377 Brass
Invoice description:
Nut Reducing 3/8x1/4in 0 .03in Wall Midland Industries 10052 Reducing Nut, 3/8 X 1/4 In Nominal, Sae Female Flare X Tube, Ca377 Brass
Factory Order
Midland Industries Nut, Reducing, Fitting/Connector Type: Nut, 3/8 x 1/4 in Nominal, SAE Female Flare x Tube, 0.03 in Thickness, 0.81 in Hex, 1400 psi, -65 to 250 deg F, CA377 Brass, 0.72 in L, Forged
Features
- Good vibration resistance, use long nut when greater vibration resistance is required
- /- 0.03 tolerance on all dimensions
Specifications
ApplicationLP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems, Copper, Brass, Aluminum and Steel Hydraulic Tubing That Can Be Flared
Dimensions0.72 in L
End StyleSAE Female Flare x Tube
Fitting/Connector TypeNut
Hex Size0.81 in
MaterialCA377 Brass
Method of ManufactureForged
Nominal Size3/8 x 1/4 in
Pressure Rating1400 psi
Temperature Rating-65 to 250 deg F
Thickness0.03 in
TypeReducing
Additional Information
Standards/ApprovalASA|ASME|MS and SAE
Country of OriginUS
