Midland Industries MIDM 10375

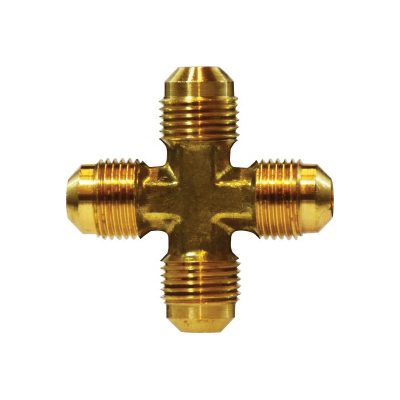

Midland Industries 10375 Cross, 3/8 in Nominal, SAE Male Flare UNF, CA377 Brass

Invoice description: Cross 3/8in 45deg Male F Lareunf 1000psi Midland Industries 10375 Cross, 3/8 In Nominal, Sae Male Flare Unf, Ca377 Brass

UNSPSC: 40183109
Manufacturer PN: 10375
$13.99 EA
Factory Order
Estimated to ship in 7 days
QTY:


Midland Industries Cross, Fitting/Connector Type: Cross, 3/8 in Nominal, SAE Male Flare UNF, 1000 psi, -65 to 250 deg F, CA377 Brass, Forged

  • Features

  • Good vibration resistance, use long nut when greater vibration resistance is required
  • /- 0.03 tolerance on all dimensions
  • 0.44 in body

Specifications

ApplicationLP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems, Copper, Brass, Aluminum and Steel Hydraulic Tubing That Can Be Flared
End StyleSAE Male Flare UNF
Fitting/Connector TypeCross
MaterialCA377 Brass
Method of ManufactureForged
Nominal Size3/8 in
Pressure Rating1000 psi
Temperature Rating-65 to 250 deg F

Additional Information

Standards/ApprovalASA|ASME|MS and SAE 010501
Country of OriginUS
