Midland Industries MIDM 10485

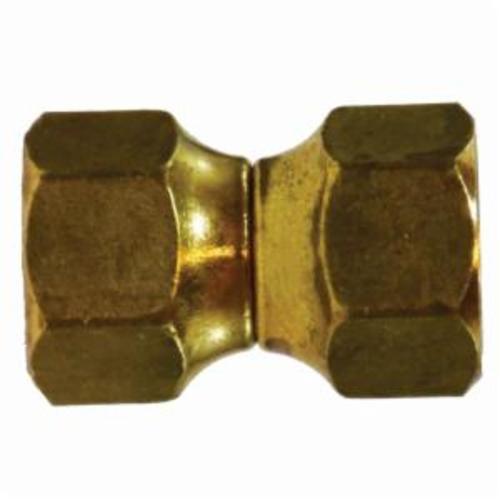

Midland Industries 10485 Swivel Union, 5/8 in Nominal, SAE Female Flare Threaded UNF, CA377 Brass

Invoice description: Union Swvl 5/8in 0.035in Wall 1.06in Midland Industries 10485 Swivel Union, 5/8 In Nominal, Sae Female Flare Threaded Unf, Ca377 Brass

UNSPSC: 40183109

Manufacturer PN: 10485

^$9.88 EA

Factory Order
Estimated to ship in 7 days

enlarge

Product Overview

Midland Industries Swivel Union, Fitting/Connector Type: Union, 5/8 in Nominal, SAE Female Flare Threaded UNF, 0.035 in Thickness, 1.06 in Hex, 650 psi, -65 to 250 deg F, CA377 Brass, Forged

Features
Good vibration resistance, use long nut when greater vibration resistance is required
/- 0.03 tolerance on all dimensions

Specifications

ApplicationLP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems, Copper, Brass, Aluminum and Steel Hydraulic Tubing That Can Be Flared

End StyleSAE Female Flare Threaded UNF

Fitting/Connector TypeUnion

Hex Size1.06 in

MaterialCA377 Brass

Method of ManufactureForged

Nominal Size5/8 in

Pressure Rating650 psi

Temperature Rating-65 to 250 deg F

Thickness0.035 in
