Midland Industries MIDM 10488

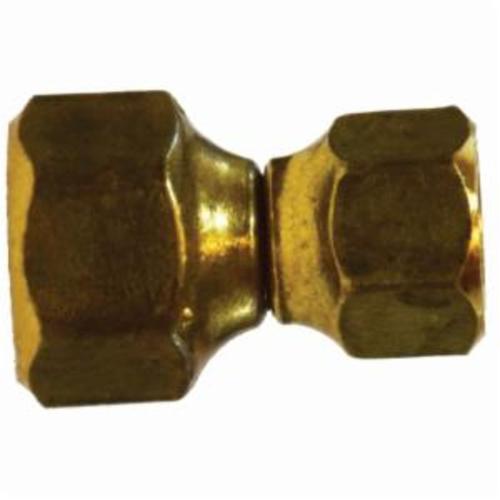

Midland Industries 10488 Reducing Swivel Union, 1/2 x 3/8 in Nominal, SAE Female Flare UNF, Brass

Invoice description: Union Swvl Reducing 1/2x 3/8in Brs Midland Industries 10488 Reducing Swivel Union, 1/2 X 3/8 In Nominal, Sae Female Flare Unf, Brass

UNSPSC: 40183109

Manufacturer PN: 10488

^$16.30 EA

Factory Order
Estimated to ship in 7 days

enlarge

Product Overview

Midland Industries Swivel Union, Reducing, Fitting/Connector Type: Union, 1/2 x 3/8 in Nominal, SAE Female Flare UNF, 0.94 x 0.81 in Hex, -65 to 250 deg F, Brass, 1.54 in L

Features
Good vibration resistance, use long nut when greater vibration resistance is required
/- 0.03 tolerance on all dimensions

Specifications

ApplicationLP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems, Copper, Brass, Aluminum and Steel Hydraulic Tubing That Can Be Flared

Dimensions1.54 in L

End StyleSAE Female Flare UNF

Fitting/Connector TypeUnion

Hex Size0.94 x 0.81 in

MaterialBrass

Nominal Size1/2 x 3/8 in

Temperature Rating-65 to 250 deg F

TypeReducing
