Midland Industries MIDM 10494

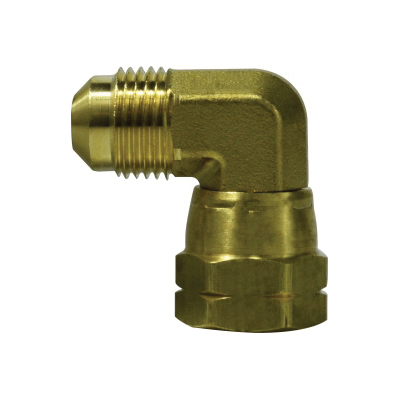

Midland Industries 10494 90 deg Swivel Elbow, 3/8 in Nominal, SAE Male Flare x Female Flare End Style, CA377 Brass
Invoice description:
Elbow Swvl 90 Deg Elb 3/ 8in Ca377 Brs Midland Industries 10494 90 Deg Swivel Elbow, 3/8 In Nominal, Sae Male Flare X Female Flare End Style, Ca377 Brass
Factory Order
Midland Industries Swivel Elbow, 90 deg Elbow Fitting/Connector, 3/8 in Nominal, SAE Male Flare x Female Flare End Style, 0.032 in Thickness, 3/4 in Hex, 1000 psi Pressure, -65 to 250 deg F, CA377 Brass, 1.12 in L x 1 in W Dimensions, Forged Method of Manufacture
Features
- Good vibration resistance, use long nut when greater vibration resistance is required
- /- 0.03 tolerance on all dimensions
Specifications
ApplicationLP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems, Copper, Brass, Aluminum and Steel Hydraulic Tubing That Can Be Flared
Dimensions1.12 in L x 1 in W
End StyleSAE Male Flare x Female Flare
Fitting/Connector Type90 deg Elbow
Hex Size3/4 in
MaterialCA377 Brass
Method of ManufactureForged
Nominal Size3/8 in
Pressure Rating1000 psi
Temperature Rating-65 to 250 deg F
Thickness0.032 in
Additional Information
Standards/ApprovalASA|ASME|MS and SAE
Country of OriginUS
