Midland Industries MIDM 12092

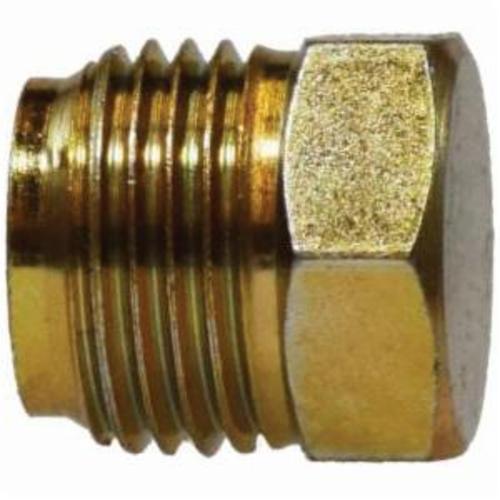

Midland Industries 12092 Plug, 1/4 in Nominal, Inverted Flare, Steel, Import
Invoice description:
Plug Plug 1/4in Inverted Flare Stl Midland Industries 12092 Plug, 1/4 In Nominal, Inverted Flare, Steel, Domestic
Factory Order
Midland Industries Plug, Fitting/Connector Type: Plug, 1/4 in Nominal, Inverted Flare, 0.03 in Wall Thickness, 0.43 in Hex, 1400 psi, -65 to 250 deg F, Steel, 0.54 in L, Import
Features
- Excellent vibration resistance
- Very low cost and reusable
- Short nut affords very close tube bends
- Seats and threads are internal and protected
- /- 0.03 tolerance on all dimensions
- Compact, excellent vibration life, short nut affords very close tube bends, steel or brass tube nut
- Cored
Specifications
ApplicationHydraulic Brake, Power Steering, Fuel Lines and Transmission Cooler Lines, LP and Natural Gas, Copper, Brass, Aluminum and Steel Hydraulic Tubing That Can Be Flared
Dimensions0.54 in L
Domestic/ImportImport
End StyleInverted Flare
Fitting/Connector TypePlug
Hex Size0.43 in
MaterialSteel
Nominal Size1/4 in
Pressure Rating1400 psi
Temperature Rating-65 to 250 deg F
Thickness0.03 in Wall
Additional Information
Standards/ApprovalASA|ASME|MS and SAE 040109
Country of OriginUS
