Midland Industries MIDM 12112

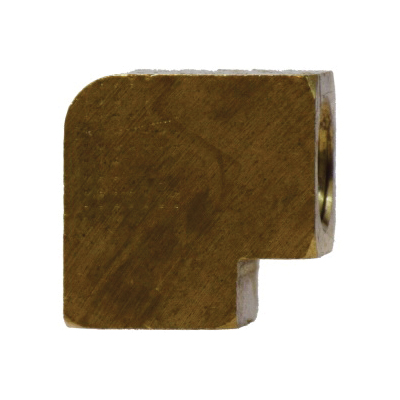

Midland Industries 12112 90 deg Elbow, 3/8 x 1/4 in Nominal, Inverted Flare x Female NPTF End Style, CA360 Brass
Invoice description:
Elbow 90 Deg Elb 3/8 X 1 /4in Ca360 Brs Midland Industries 12112 90 Deg Elbow, 3/8 X 1/4 In Nominal, Inverted Flare X Female Nptf End Style, Ca360 Brass
Factory Order
Midland Industries Elbow, 90 deg Elbow Fitting/Connector, 3/8 x 1/4 in Nominal, Inverted Flare x Female NPTF End Style, 0.032 in Thickness, 1000 psi Pressure, -65 to 250 deg F, CA360 Brass, 0.68 in L Dimensions
Features
- Excellent vibration resistance
- Very low cost and reusable
- Short nut affords very close tube bends
- Seats and threads are internal and protected
- /- 0.03 tolerance on all dimensions
- Compact, excellent vibration life, short nut affords very close tube bends, steel or brass tube nut
Specifications
ApplicationHydraulic Brake, Power Steering, Fuel Lines and Transmission Cooler Lines, LP and Natural Gas, Copper, Brass, Aluminum and Steel Hydraulic Tubing That Can Be Flared
Dimensions0.68 in L
End StyleInverted Flare x Female NPTF
Fitting/Connector Type90 deg Elbow
MaterialCA360 Brass
Nominal Size3/8 x 1/4 in
Pressure Rating1000 psi
Temperature Rating-65 to 250 deg F
Thickness0.032 in
Additional Information
Standards/ApprovalASA|ASME|MS and SAE 040203
Country of OriginUS
