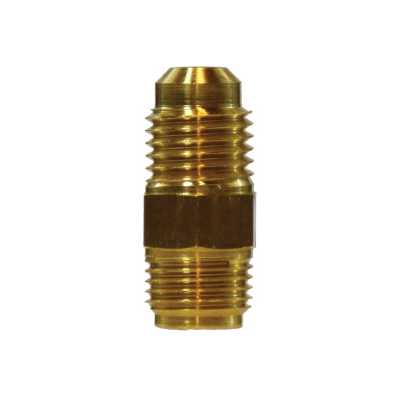

Midland Industries MIDM 12252
Midland Industries 12252 Adapter, 1/4 in Nominal, SAE Male Flare x Male Inverted Flare, CA360 Brass, Import
Invoice description:
Adapter 1/4in 0.03in Wal L 0.43in Midland Industries 12252 Adapter, 1/4 In Nominal, Sae Male Flare X Male Inverted Flare, Ca360 Brass, Domestic
Factory Order
Midland Industries Adapter, Fitting/Connector Type: Adapter, 1/4 in Nominal, SAE Male Flare x Male Inverted Flare, 0.03 in Thickness, 0.43 in Hex, 1400 psi, -65 to 250 deg F, CA360 Brass, 1.03 in L, Import
Features
- Excellent vibration resistance
- Very low cost and reusable
- Short nut affords very close tube bends
- Seats and threads are internal and protected
- /- 0.03 tolerance on all dimensions
- Compact, excellent vibration life, short nut affords very close tube bends, steel or brass tube nut
Specifications
ApplicationHydraulic Brake, Power Steering, Fuel Lines and Transmission Cooler Lines, LP and Natural Gas, Copper, Brass, Aluminum and Steel Hydraulic Tubing That Can Be Flared
Dimensions1.03 in L
Domestic/ImportImport
End StyleSAE Male Flare x Male Inverted Flare
Fitting/Connector TypeAdapter
Hex Size0.43 in
MaterialCA360 Brass
Nominal Size1/4 in
Pressure Rating1400 psi
Temperature Rating-65 to 250 deg F
Thickness0.03 in
Additional Information
Standards/ApprovalASA|ASME|MS and SAE
Country of OriginUS
