Midland Industries MIDM 12337

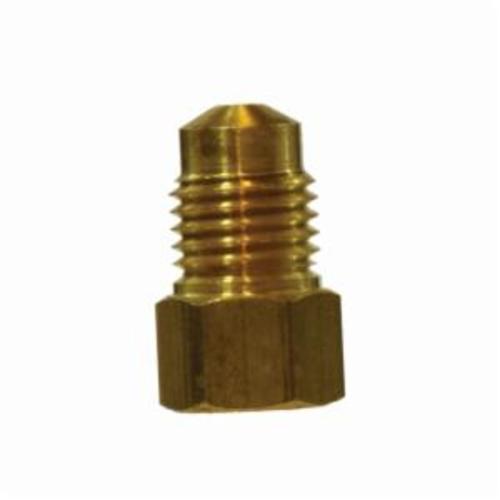

Midland Industries 12337 Standard Adapter, 3/16 in Nominal, Male Metric Bubble Flare x Female Inverted Flare Seat, CA360 Brass
Invoice description:
Adapter 3/16in Femxmale 1/2in 1900psi Midland Industries 12337 Standard Adapter, 3/16 In Nominal, Male Metric Bubble Flare X Female Inverted Flare Seat, Ca360 Brass
Factory Order
Midland Industries Adapter, Standard, Fitting/Connector Type: Adapter, 3/16 in Nominal, Male Metric Bubble Flare x Female Inverted Flare Seat, 1/2 in Hex, 1900 psi, -65 to 250 deg F, CA360 Brass, 1 in L
Features
- Excellent vibration resistance
- Very low cost and reusable
- Short nut affords very close tube bends
- Seats and threads are internal and protected
- /- 0.03 tolerance on all dimensions
- Compact, excellent vibration life, short nut affords very close tube bends, steel or brass tube nut
- Standard to metric bubble
Specifications
ApplicationHydraulic Brake, Power Steering, Fuel Lines and Transmission Cooler Lines, LP and Natural Gas, Copper, Brass, Aluminum and Steel Hydraulic Tubing That Can Be Flared
Dimensions1 in L
End StyleMale Metric Bubble Flare x Female Inverted Flare Seat
Fitting/Connector TypeAdapter
Hex Size1/2 in
MaterialCA360 Brass
Nominal Size3/16 in
Pressure Rating1900 psi
Temperature Rating-65 to 250 deg F
TypeStandard
Additional Information
Standards/ApprovalASA|ASME/MS and SAE
Country of OriginUS
