Midland Industries MIDM 16090

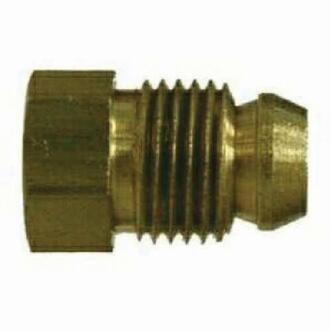

Midland Industries 16090 Break-Away Nut, 3/16 in, Compression, Brass

Invoice description: Nut Brk-away 3/16in Comp Ression 0.37in Midland Industries 16090 Break-away Nut, 3/16 In, Compression, Brass

UNSPSC: 40183109
Manufacturer PN: 16090
$8.57 EA
Factory Order
Estimated to ship in 7 days
QTY:


Midland Industries Break-Away Nut, Nut, 3/16 in Nominal, Compression, 0.37 in Hex, 400 psi, -65 to 250 deg F, Brass, 0.57 in L

  • Features

  • Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
  • Fair resistance use long nut when greater vibration resistance is needed
  • /-0.02 tolerance on all dimensions
  • Not recommended for steel tubing
  • 1-piece fitting

Specifications

ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
Dimensions0.57 in L
End StyleCompression
Fitting/Connector TypeNut
Hex Size0.37 in
MaterialBrass
Nominal Size3/16 in
Pressure Rating400 psi
Temperature Rating-65 to 250 deg F

Additional Information

Standards/ApprovalASA|ASME and SAE
Country of OriginUS
