Midland Industries MIDM 18069L

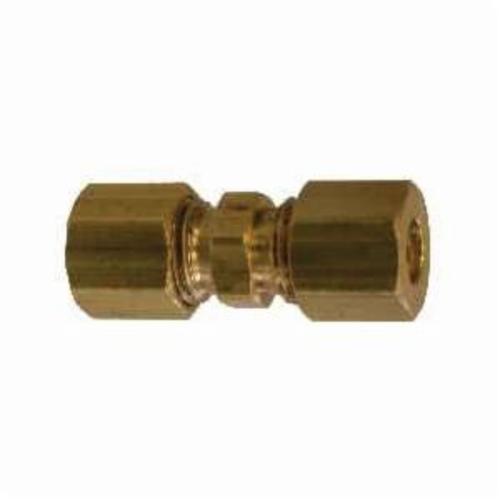

Midland Industries 18069L Light Pattern Tube Union, 5/8 in Nominal, Compression End Style, Brass
Invoice description:
Union Tube Coupling Lt P Ait 5/8in Brs Midland Industries 18069l Light Pattern Tube Union, 5/8 In Nominal, Compression End Style, Brass
Factory Order
Midland Industries Tube Union, Light Pattern, Coupling Fitting/Connector, 5/8 in Nominal, Compression End Style, 0.81 in Hex, 150 psi Pressure, -65 to 250 deg F, Brass
Features
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
- Fair resistance use long nut when greater vibration resistance is needed
- /-0.02 tolerance on all dimensions
- Not recommended for steel tubing
- These fittings are completely interchangeable with full pattern fittings, but have been modified in some way
- This modification is usually in the length of the pipe threads
Specifications
ApplicationFor use with aluminum, copper, brass and thermoplastic tubing, plumbing and light industrial applications
End StyleCompression
Fitting/Connector TypeCoupling
Hex Size0.81 in
MaterialBrass
Nominal Size5/8 in
Pressure Rating150 psi
Temperature Rating-65 to 250 deg F
TypeLight Pattern
Additional Information
Standards/ApprovalASA|ASME and SAE 060101BA
Country of OriginUS
