Midland Industries MIDM 18079

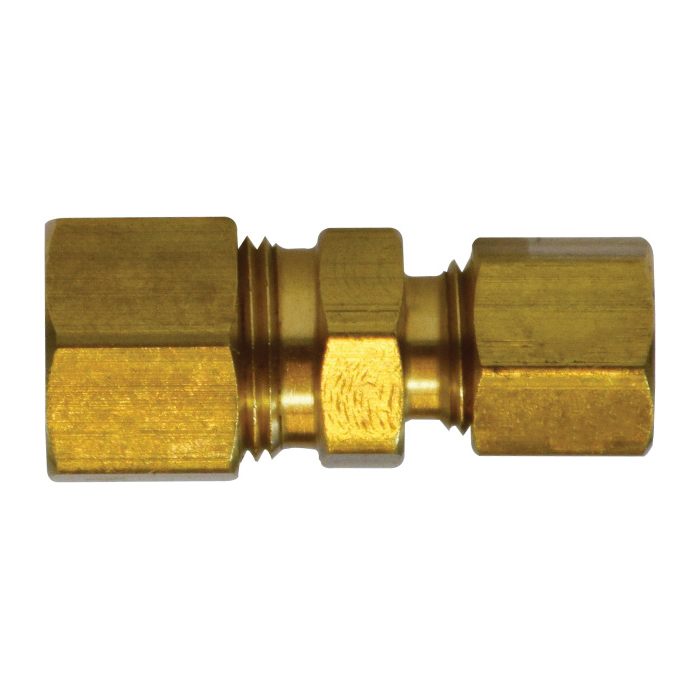

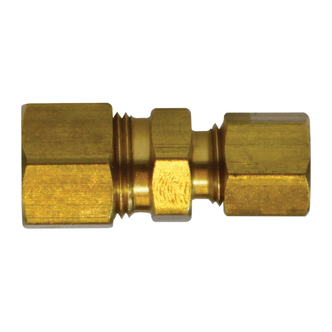

Midland Industries 18079 Tube Reducing Union, 3/8 x 1/4 in Nominal, Compression End Style, Brass, Import
Invoice description:
Union Reducing Tube Coup Ling 3/8 X 1/4in Midland Industries 18079 Tube Reducing Union, 3/8 X 1/4 In Nominal, Compression End Style, Brass, Import
Factory Order
Midland Industries Tube Reducing Union, Coupling Fitting/Connector, 3/8 x 1/4 in Nominal, Compression End Style, 0.56 in Hex, 200 psi Pressure, -65 to 250 deg F, Brass, Import
Features
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
- Fair resistance use long nut when greater vibration resistance is needed
- /-0.02 tolerance on all dimensions
- Not recommended for steel tubing
Specifications
ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
Domestic/ImportImport
End StyleCompression
Fitting/Connector TypeCoupling
Hex Size0.56 in
MaterialBrass
Nominal Size3/8 x 1/4 in
Pressure Rating200 psi
Temperature Rating-65 to 250 deg F
Additional Information
Standards/ApprovalASA|ASME and SAE
Country of OriginTW
