MMM MIDM 18084

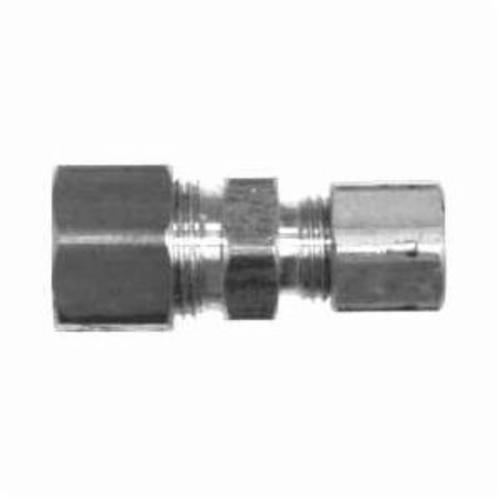

MMM 18084 Tube Reducing Union, 7/8 x 5/8 in Nominal, Compression End Style, Brass
Invoice description:
Union Reducing Tube Coup Ling 7/8 X 5/8in Mmm 18084 Tube Reducing Union, 7/8 X 5/8 In Nominal, Compression End Style, Brass
Factory Order
MMM Tube Reducing Union, Coupling Fitting/Connector, 7/8 x 5/8 in Nominal, Compression End Style, 1.18 in Hex, 75 psi Pressure, -65 to 250 deg F, Brass
Features
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
- Fair resistance use long nut when greater vibration resistance is needed
- /-0.02 tolerance on all dimensions
- Not recommended for steel tubing
Specifications
ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
End StyleCompression
Fitting/Connector TypeCoupling
Hex Size1.18 in
MaterialBrass
Nominal Size7/8 x 5/8 in
Pressure Rating75 psi
Temperature Rating-65 to 250 deg F
Additional Information
Standards/ApprovalASA|ASME and SAE
Country of OriginUS
