Midland Industries MIDM 18097

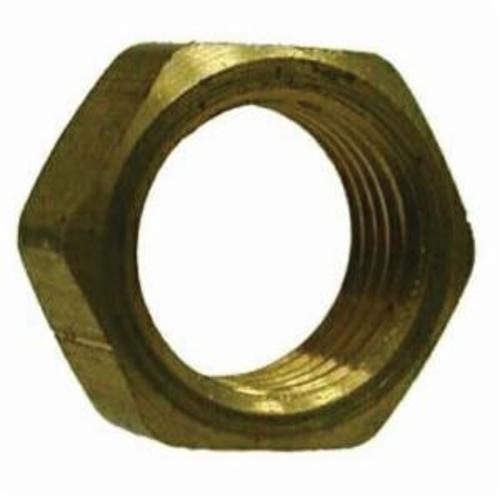

Midland Industries 18097 Bulkhead Nut, 1/4 in, Compression, Brass
Invoice description:
Nut Bhd 1/4in Compressio N 0.56in 300psi Midland Industries 18097 Bulkhead Nut, 1/4 In, Compression, Brass
Factory Order
Midland Industries Bulkhead Nut, Nut, 1/4 in Nominal, Compression, 0.56 in Hex, 300 psi, -65 to 250 deg F, Brass, 1/4 in W
Features
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
- Fair resistance use long nut when greater vibration resistance is needed
- /-0.02 tolerance on all dimensions
- Not recommended for steel tubing
Specifications
ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
Dimensions1/4 in W
End StyleCompression
Fitting/Connector TypeNut
Hex Size0.56 in
MaterialBrass
Nominal Size1/4 in
Pressure Rating300 psi
Temperature Rating-65 to 250 deg F
Additional Information
Standards/ApprovalASA|ASME and SAE
Country of OriginUS
