Midland Industries MIDM 18099

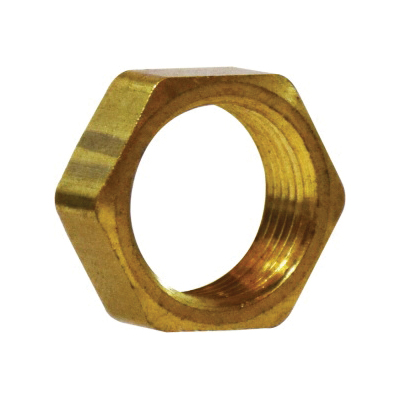

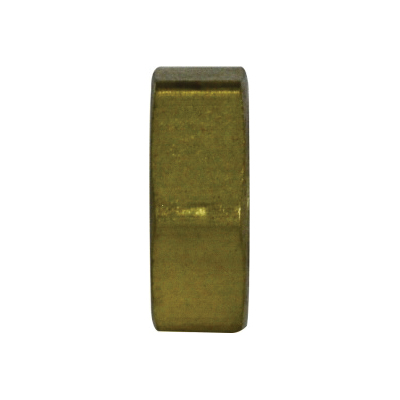

Midland Industries 18099 Bulkhead Nut, 3/8 in, Compression, Brass

Invoice description: Nut Bhd 3/8in Compressio N 0.68in 200psi Midland Industries 18099 Bulkhead Nut, 3/8 In, Compression, Brass

UNSPSC: 40183109
Manufacturer PN: 18099
$5.58 EA
Factory Order
Estimated to ship in 7 days
QTY:


Midland Industries Bulkhead Nut, Nut, 3/8 in Nominal, Compression, 0.68 in Hex, 200 psi, -65 to 250 deg F, Brass, 1/4 in W

  • Features

  • Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
  • Fair resistance use long nut when greater vibration resistance is needed
  • /-0.02 tolerance on all dimensions
  • Not recommended for steel tubing

Specifications

ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
Dimensions1/4 in W
End StyleCompression
Fitting/Connector TypeNut
Hex Size0.68 in
MaterialBrass
Nominal Size3/8 in
Pressure Rating200 psi
Temperature Rating-65 to 250 deg F

Additional Information

Standards/ApprovalASA|ASME and SAE
Country of OriginUS
