Midland Industries MIDM 18110

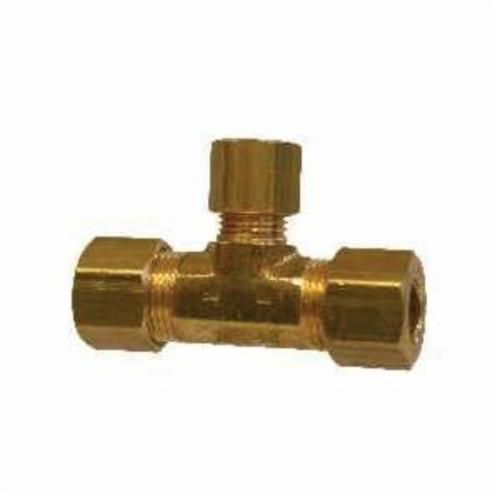

Midland Industries 18110 Tube Reducing Tee, 1/4 x 1/4 x 3/8 in, Compression, CA377 Brass
Invoice description:
Tee Reducing Tube 1/4x1/ 4x3/8in Fgd Midland Industries 18110 Tube Reducing Tee, 1/4 X 1/4 X 3/8 In, Compression, Ca377 Brass
Factory Order
Midland Industries Tube Reducing Tee, Tee, 1/4 x 1/4 x 3/8 in Nominal, Compression, 300 psi, -65 to 250 deg F, CA377 Brass, Forged
Features
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
- Fair resistance use long nut when greater vibration resistance is needed
- /-0.02 tolerance on all dimensions
- Not recommended for steel tubing
- 0.5 in body size
Specifications
ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
End StyleCompression
Fitting/Connector TypeTee
MaterialCA377 Brass
Method of ManufactureForged
Nominal Size1/4 x 1/4 x 3/8 in
Pressure Rating300 psi
Temperature Rating-65 to 250 deg F
Additional Information
Standards/ApprovalASA|ASME and SAE
Country of OriginUS
