Midland Industries MIDM 18154

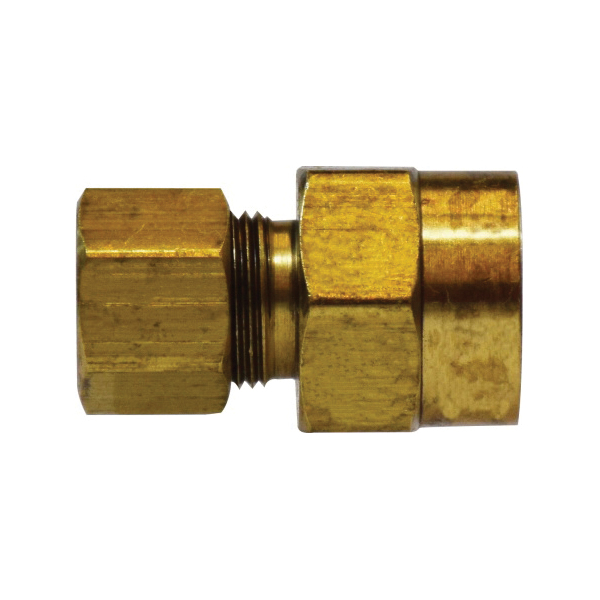

Midland Industries 18154 Tube-to-Pipe Adapter, 3/8 in, Compression x FNPTF, Brass
Invoice description:
Adapter Tube-to-pipe 3/8 In 0.81in 200psi Midland Industries 18154 Tube-to-pipe Adapter, 3/8 In, Compression X Fnptf, Brass
Factory Order
Midland Industries Tube-to-Pipe Adapter, Adapter, 3/8 in Nominal, Compression x FNPTF, 0.81 in Hex, 200 psi, -65 to 250 deg F, Brass
Features
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
- Fair resistance use long nut when greater vibration resistance is needed
- /-0.02 tolerance on all dimensions
- Not recommended for steel tubing
Specifications
ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
End StyleCompression x FNPTF
Fitting/Connector TypeAdapter
Hex Size0.81 in
MaterialBrass
Nominal Size3/8 in
Pressure Rating200 psi
Temperature Rating-65 to 250 deg F
Additional Information
Standards/ApprovalASA|ASME and SAE 060103
Country of OriginTW
