Midland Industries MIDM 18171

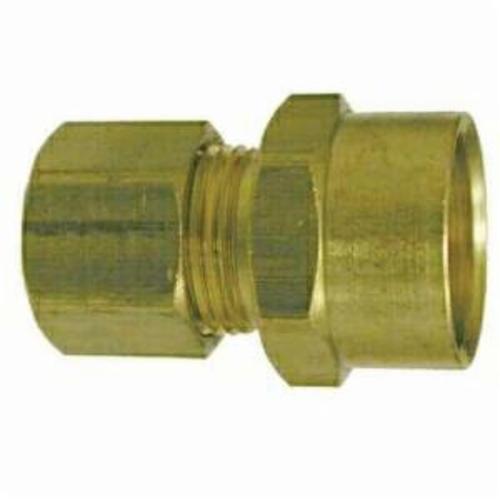

Midland Industries 18171 Tube Adapter, 3/8 x 1/2 in, Compression x Sweat, Brass

Invoice description: Adapter Tube 3/8x1/2in 3 /4in 200psi Midland Industries 18171 Tube Adapter, 3/8 X 1/2 In, Compression X Sweat, Brass

UNSPSC: 40183109
Manufacturer PN: 18171
$5.49 EA
Factory Order
Estimated to ship in 7 days
QTY:


Midland Industries Tube Adapter, Adapter, 3/8 x 1/2 in Nominal, Compression x Sweat, 3/4 in Hex, 200 psi, -65 to 250 deg F, Brass

  • Features

  • Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
  • Fair resistance use long nut when greater vibration resistance is needed
  • /-0.02 tolerance on all dimensions
  • Not recommended for steel tubing

Specifications

ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
End StyleCompression x Sweat
Fitting/Connector TypeAdapter
Hex Size3/4 in
MaterialBrass
Nominal Size3/8 x 1/2 in
Pressure Rating200 psi
Temperature Rating-65 to 250 deg F

Additional Information

Standards/ApprovalASA|ASME and SAE
Country of OriginUS
